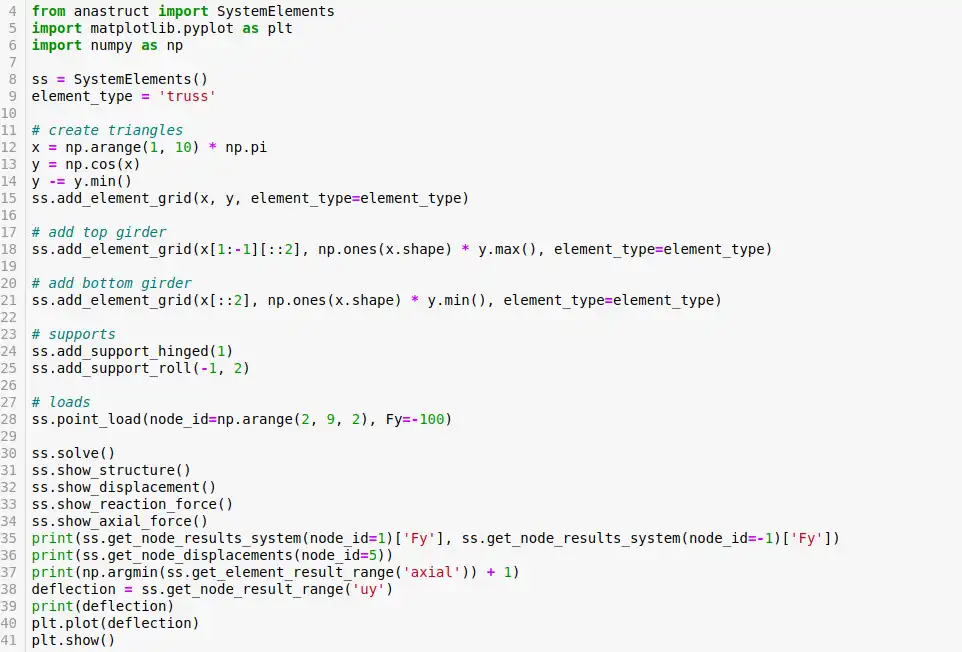

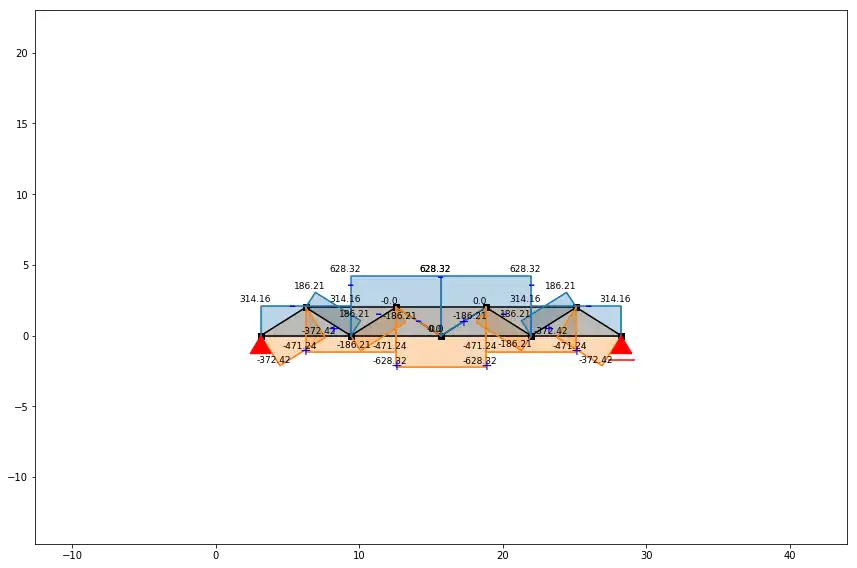

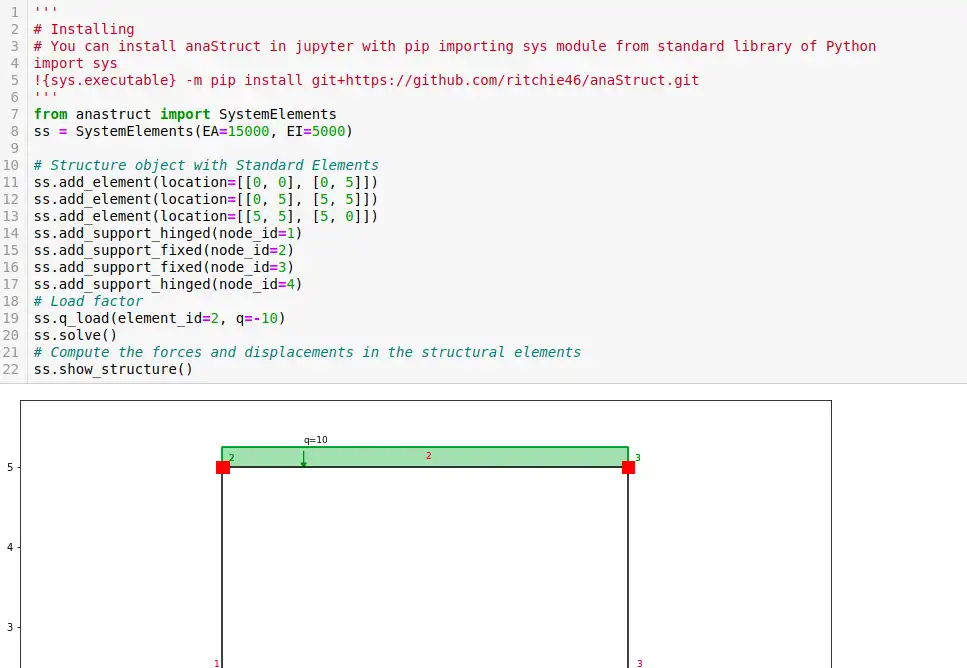

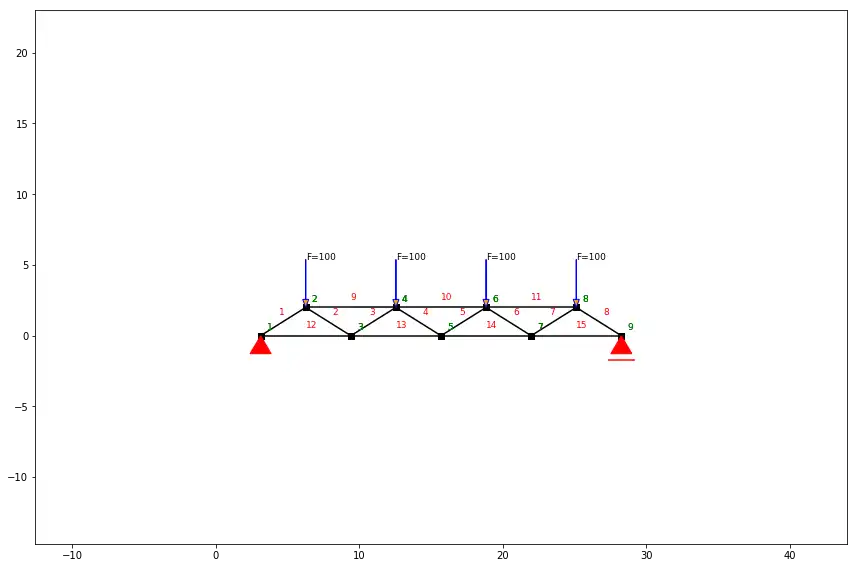

SCREENSHOTS
Ad
2D Structural Analysis to run in Linux online
DESCRIPTION
2D Structural Analysis in Python by Ritchie VinkA collection examples of 2D Finite Element Analysis (FEA) made with Jupyter Notebook Lab - https://jupyter.org/
To install Jupyter - https://jupyter.org/install
======
Web App is available on Chrome Web Store -> https://bit.ly/2NHSE35
Features
- trusses, beams, moments lines
- axial force lines, shear force lines
- displacement lines
- hinged supports, fixed supports, hinged elements
- spring supports, rotational springs
- q-load in elements direction, point loads in global x, y directions on nodes, dead load, q-loads in global y direction, load cases and load combinations
- non-linear nodes
- geometrical non linearity
- generic type of section - rectangle and circle
- EU, US, UK steel section database
Audience
Science/Research, Education, Engineering
Programming Language
Python
