Arduino Nano Dew Controller Pro (DIY) to run in Linux online
DESCRIPTION

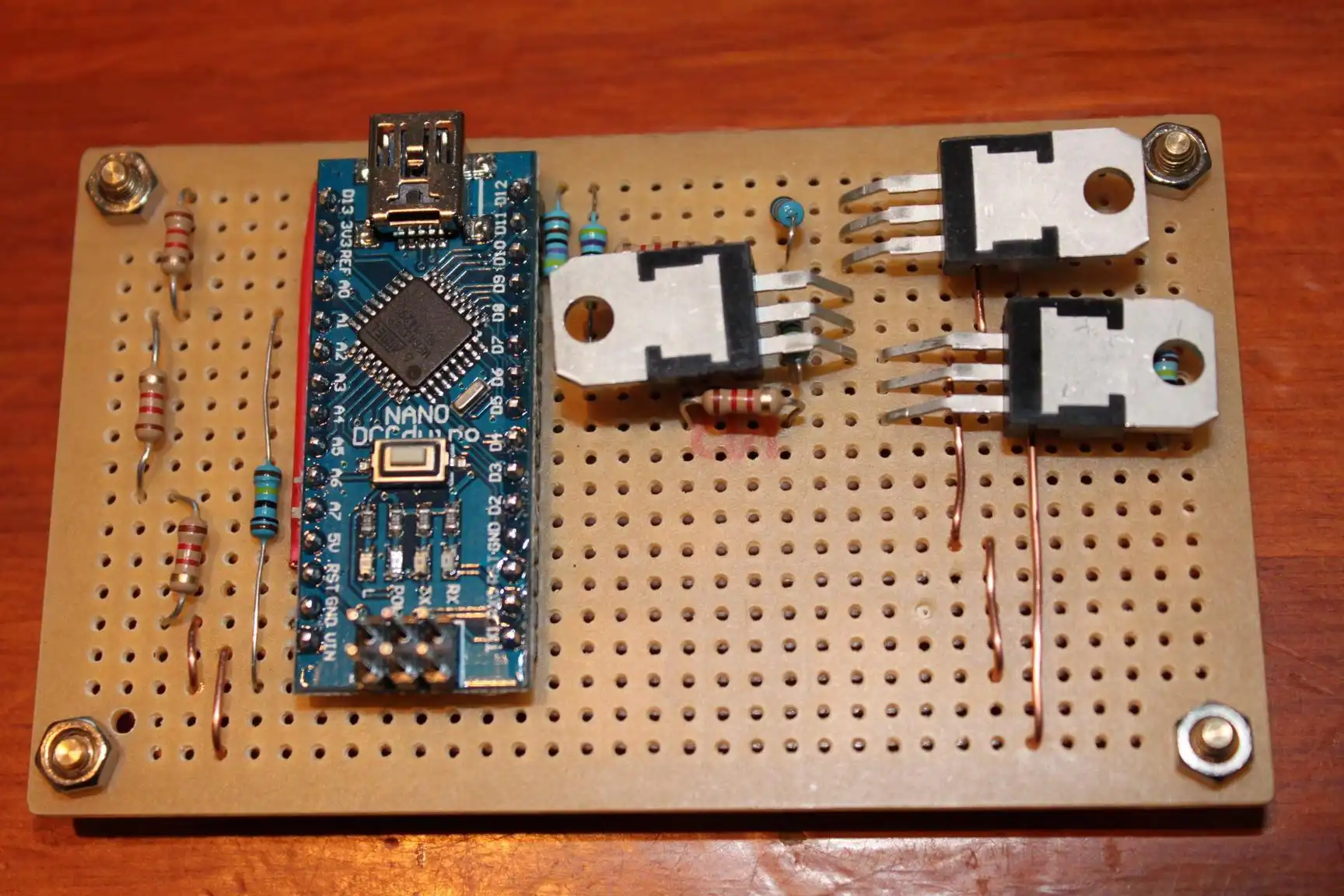

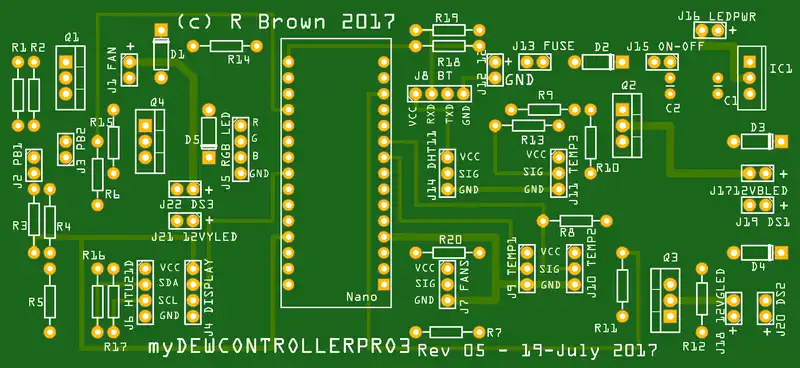

A 3-channel fully automated Dew Controller (DIY project) based on Arduino Nano for telescopes. For $48 or less.(c) Copyright Robert Brown 2014-2020. All Rights Reserved.
Permission is granted for personal and Academic use only.
Code or portions of code may not be copied or used without appropriate credit given to author.
Features
- Supports standard dew straps such as DEW NOT via PWM output, 12VDC
- Supports 3 independent controlled dew channels
- Supports 3 independent temperature probes DS18B20 (3 on v300)
- DHT11/21/22 or HTU21D I2C Temp/Humidity sensor support
- LCD1602 (or LCD2004) display all settings
- Optional remote control and logging via USB
- Reverse voltage protection on 12VDC input
- Each dew channel powered by high efficiency MOSFET
- Controller automatically adjusts power to dew straps (0, 10%, 20%, 50%, 75%, 100%) as required
- Supports manual override switches to boost PWM power to 100% for each dew channel
- Three tracking algorithms, DewPoint, Ambient and MidPoint with adjustable band offsets
- Key session state values saved in EEPROM for later retrieval
- 12VDC cooling fan support, speed PWM controlled with RGB LED indicator
- LEDS indicate if PWR is on to dew channels (brightness indicates % pwr applied)
- Low cost

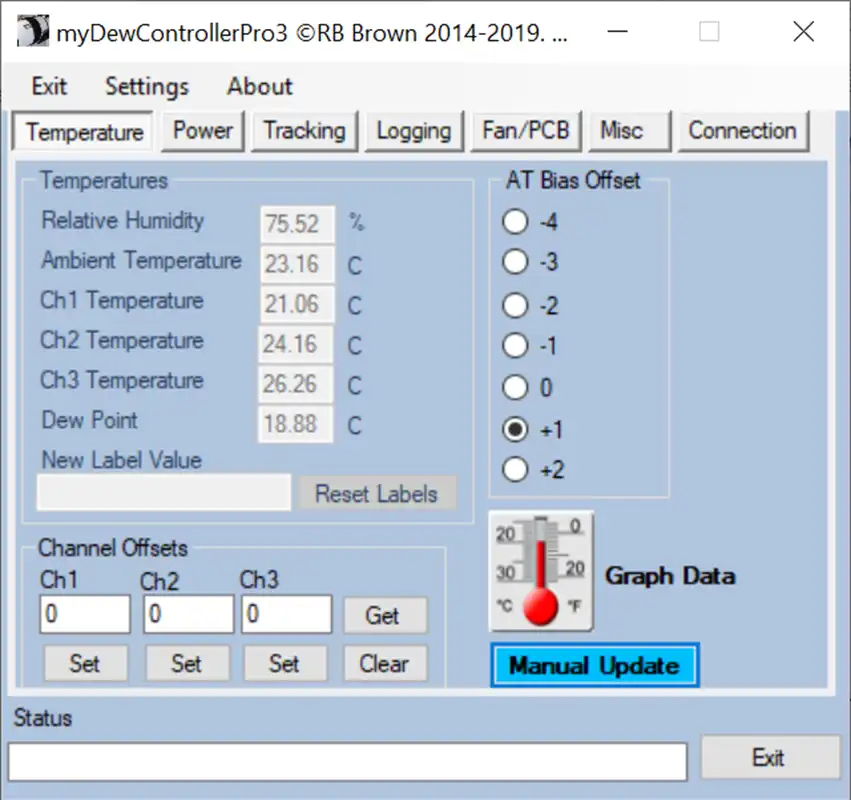

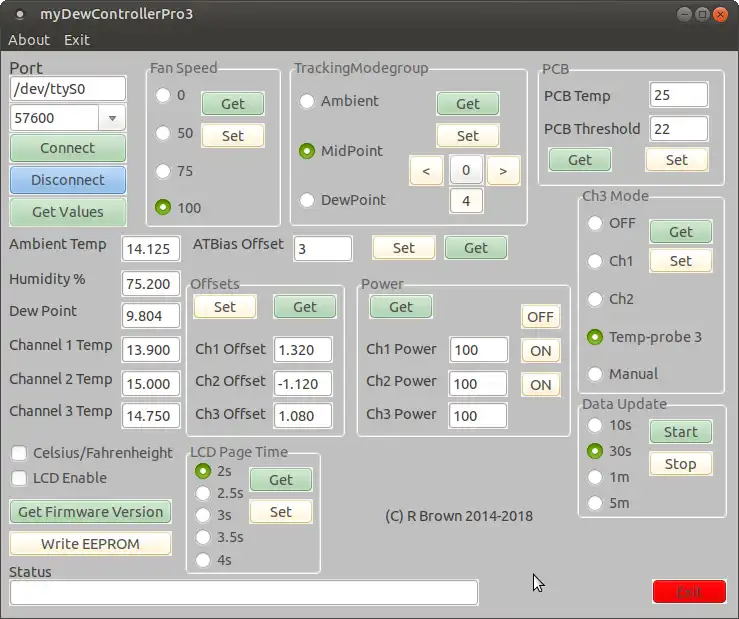

- Windows application for remote control/logging, auto update of controller parameters
- FULLY AUTOMATIC OPERATION - NO USER INTERVENTION REQUIRED
- Can be controlled or monitored remotely via USB connection
- Data logging of parameters to CSV file
- Calibration setting for each temperature probe

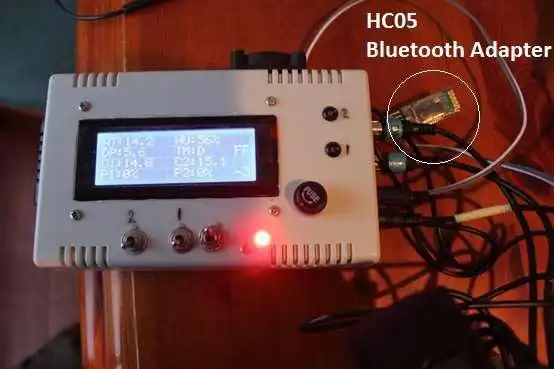

- Optional Bluetooth wireless support - July 2015
- MOSFET Upgrade - May 2016
- DO NOT DOWNLOAD SOFTWARE FROM OTHER SITES AS AN EXE/ISO/ZIP FILE - THESE FILES ARE NOT SUPPORTED AND MAY CONTAIN MALWARE
Audience
End Users/Desktop
User interface
Win32 (MS Windows)
Programming Language
C#, Free Pascal
