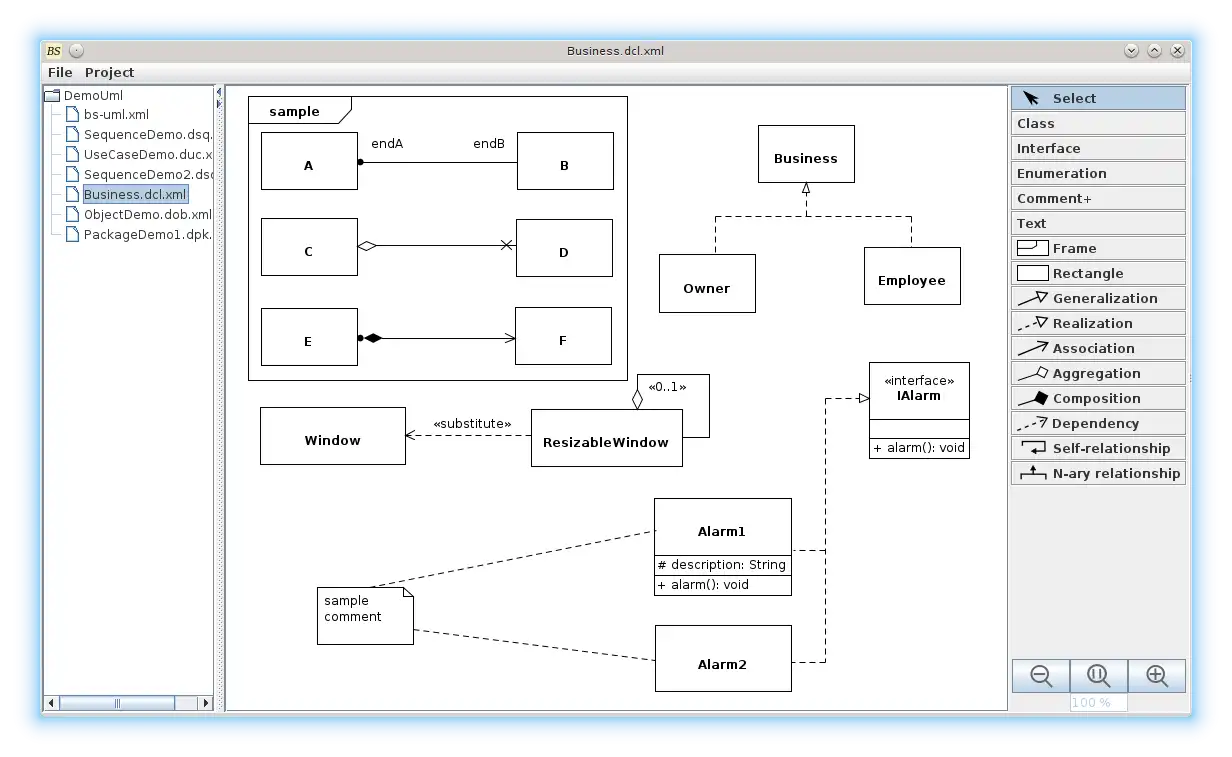

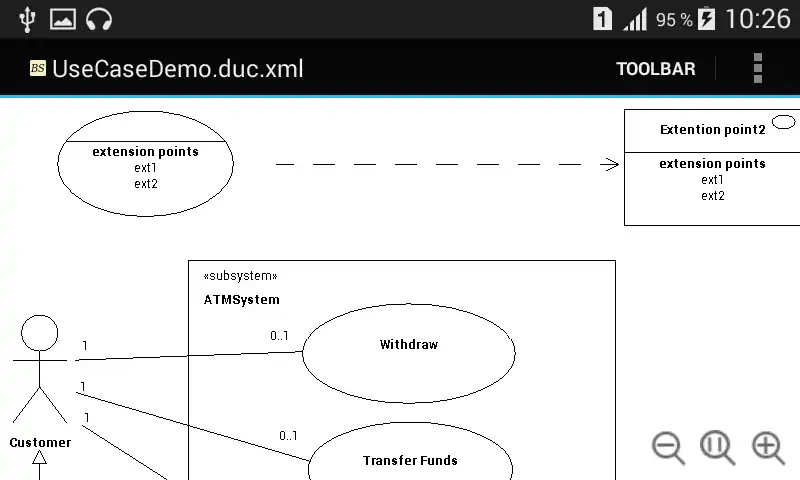

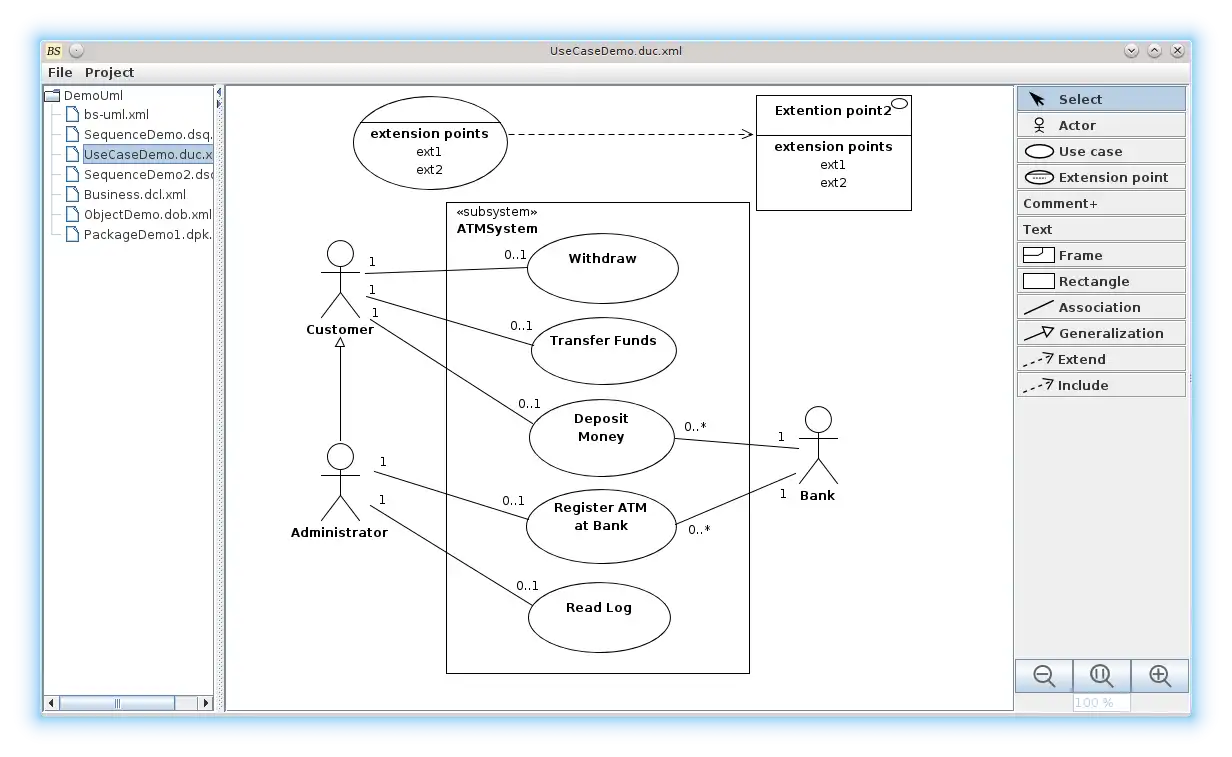

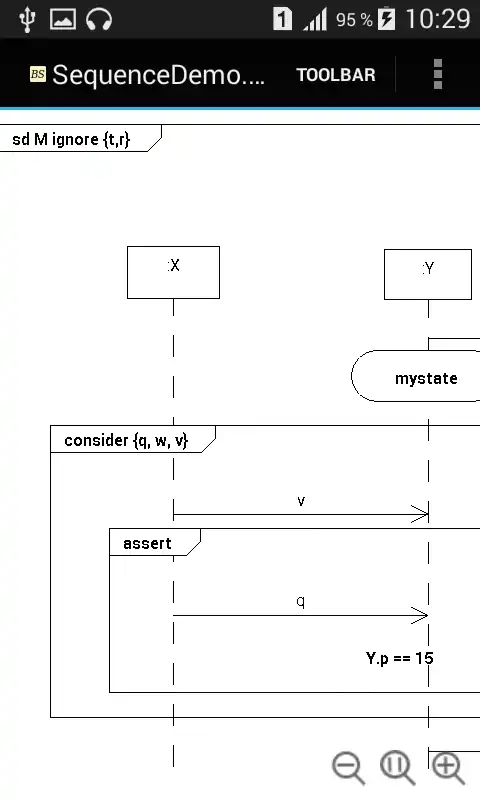

SCREENSHOTS
Ad
BeigeUML
DESCRIPTION
BeigeUML is an UML diagram editor. It has two user interfaces - ordinary desktop SWING and Android.
Features:
1. Supports UML 2.4.1 compliant class diagram, package diagram, object diagram, sequence diagram and use case diagram.
2. It generates UML class diagram from Java source.

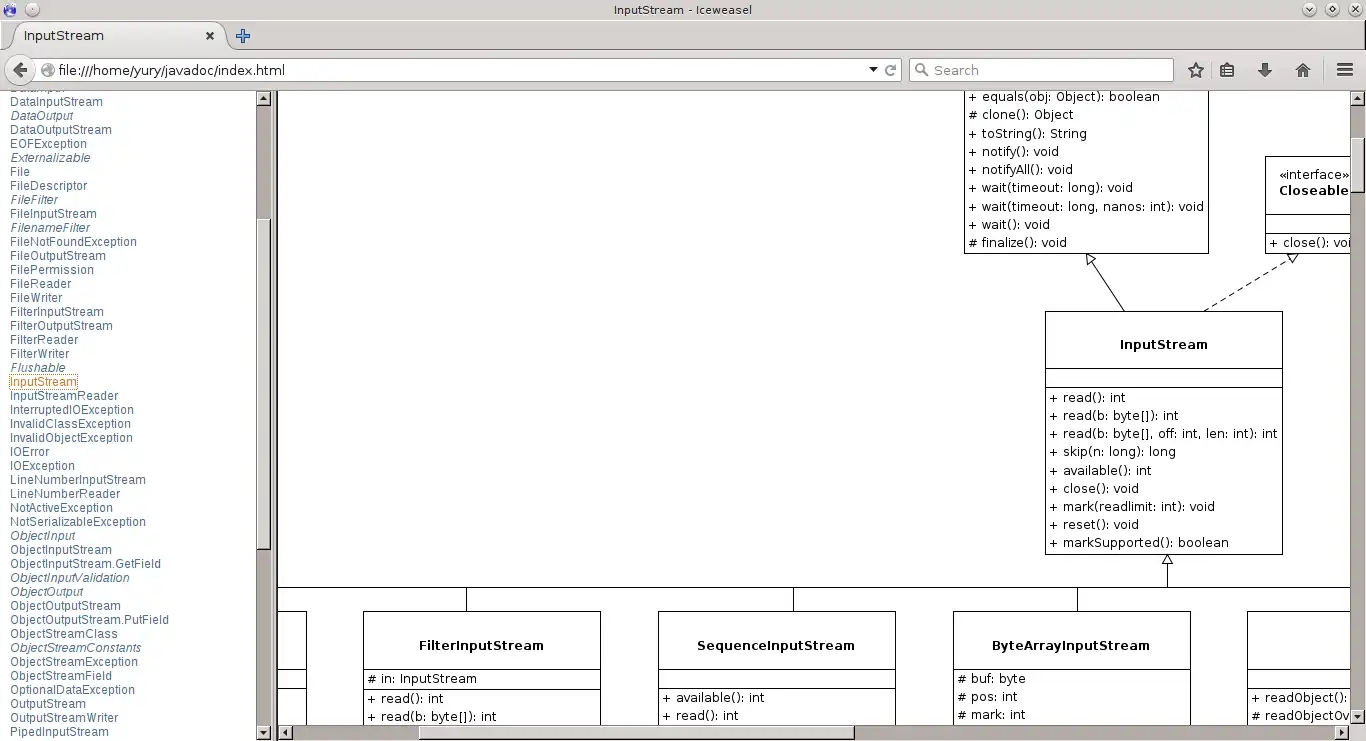

3. It's a doclet that generates standard Javadoc with UML class diagram.
This application you can download from Central Maven Repository: https://search.maven.org/#search%7Cga%7C1%7Cg%3A%22org.beigesoft%22. There beige-uml-swing-[VERSION]-jar-with-dependencies.jar is Swing application and beige-uml-android-[VERSION].apk is Android application. Android version you can find also in Google Play Store. Its source code you can download at https://github.com/demidenko05/beige-uml
Source of beige-android-demo (demo of Android tree/file-chooser, list-chooser etc.) still here.
User interface
Java Swing
Programming Language
Java
This is an application that can also be fetched from https://sourceforge.net/projects/beigeuml/. It has been hosted in OnWorks in order to be run online in an easiest way from one of our free Operative Systems.
