Callflow Sequence Diagram Generator
DESCRIPTION

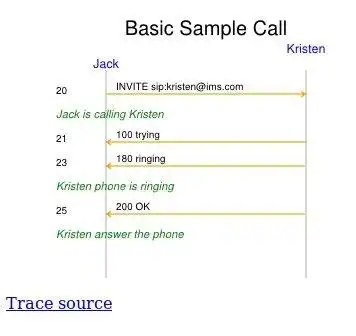

The callflow sequence diagram generator is a collection of awk and shell scripts that will take a packet capture file that can be read by wireshark and produce a time sequence diagram. This is useful to view & debug SIP callflows or other network traffic
Audience
Telecommunications Industry
User interface
Command-line
Programming Language
AWK, Unix Shell
