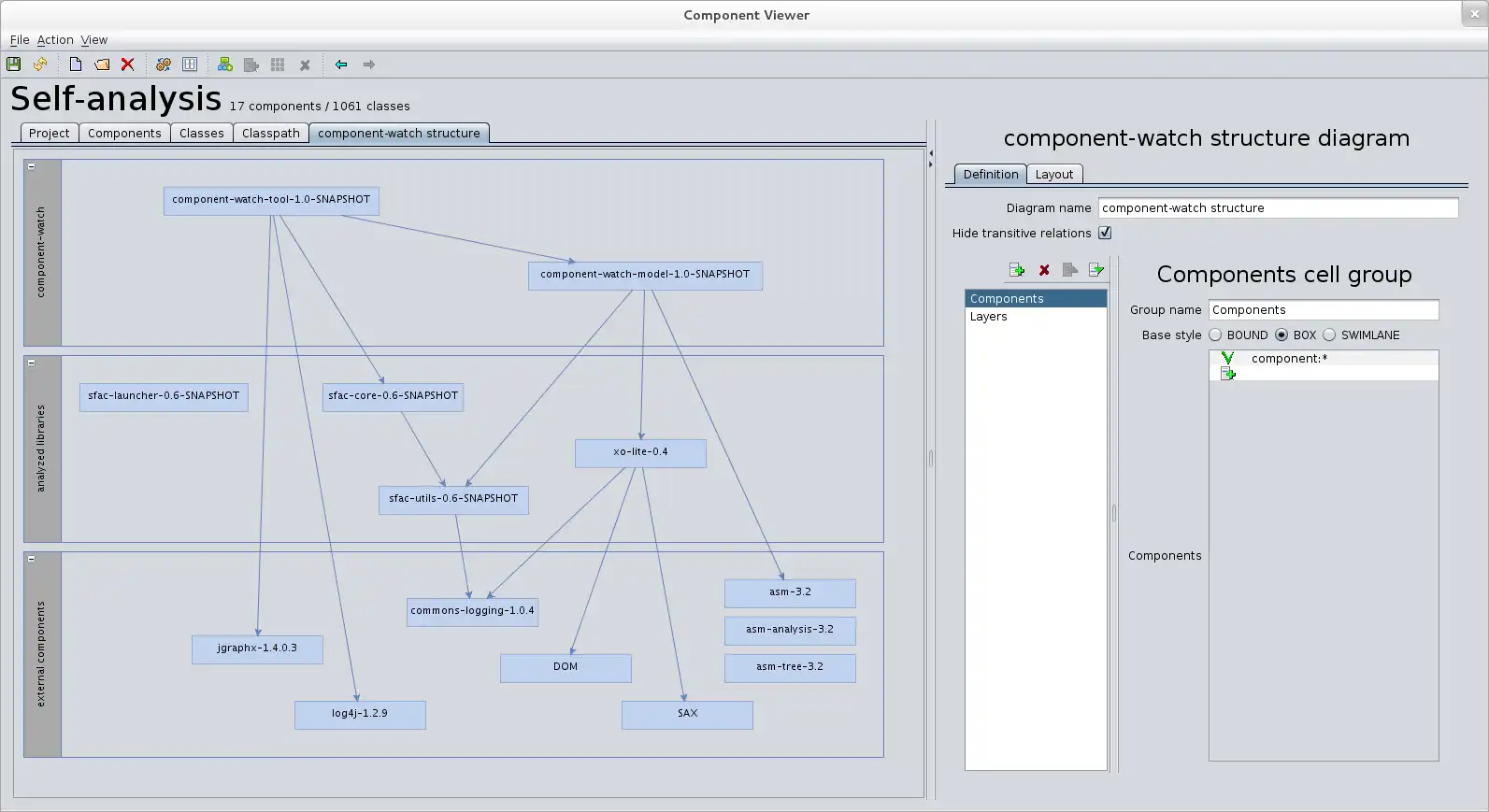

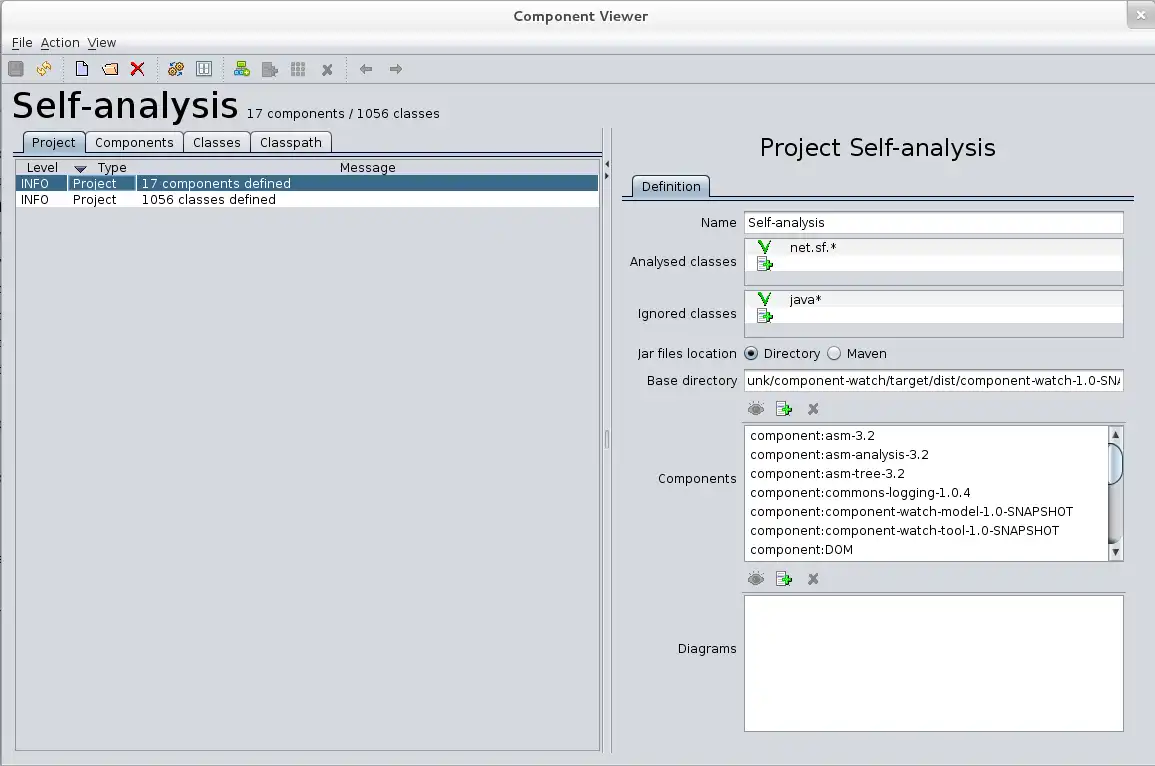

SCREENSHOTS
Ad
component-watch
DESCRIPTION
"Component-Watch" is a tool discovering, showing and assessing the structure of (big) java programs from their classes.It finds what are the components composing a program, analyse what are the relations between those components and compare those the the permitted relations between components.
The tool helps to easily define and display UML-like diagrams showing components and their relationship.
Features
- Analyse java classes, find components and their relationships
- Describe program structure using super-components
- Define rules and validate them during code evolution
- Generate UML-like digrams to show program structure
Audience
Developers, Architects
User interface
Java Swing
Programming Language
Java
