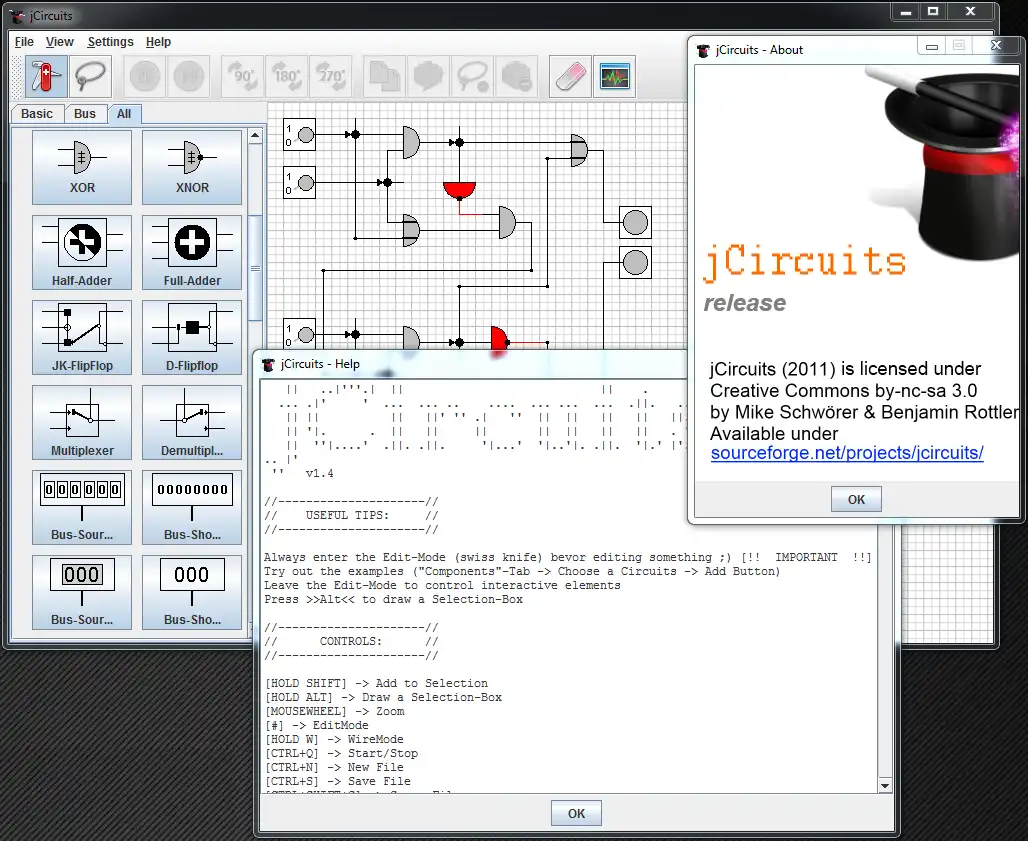

SCREENSHOTS
Ad
jCircuits to run in Linux online
DESCRIPTION
A very easy-to-use but complex Gate-Simulation.You can simulate various gatters like AND, NAND, OR, NOR, NOT, XOR. And also build Flip-Flops, Full Adders and other compley structures. In other words its a register-Transfer Simulation of Hardware-Processes.There are also 2 Applet-Versions - the full Version and a only-Display-Version
---------- USEFUL TIPS: ----------
Always enter the Edit-Mode (swiss knife) bevor editing something ;) [!! IMPORTANT !!]
Try out the examples ("Components"-Tab -> Choose a Circuit -> Add Button)
Leave the Edit-Mode to control interactive elements
Press >>Alt<< to draw a Selection-Box
Press >>Shift<< to complement your Selection
Features
- Gate Simulation
- FlipFlops
- works on nearly all Operating systems
- Register-Transfer-Simulation
- neat GUI
- free and Open-Source
- very performant
- full-functional Applet-Version
- a Only-Display-Applet-Version (no need of signing the Applet)
- BUS-System
- OpenGL and Canvas Rendering
- Compatible with the Cir-Fileformat (http://gkinf.de)
- Load and Save the Grid
- Dragging and Zooming
- Over 50 different Elements
User interface
Java Swing
Programming Language
Java
This is an application that can also be fetched from https://sourceforge.net/projects/jcircuits/. It has been hosted in OnWorks in order to be run online in an easiest way from one of our free Operative Systems.
