Sezioni
DESCRIPTION
This software is a basic tool for section property evaluation and stress calculation, written in python.

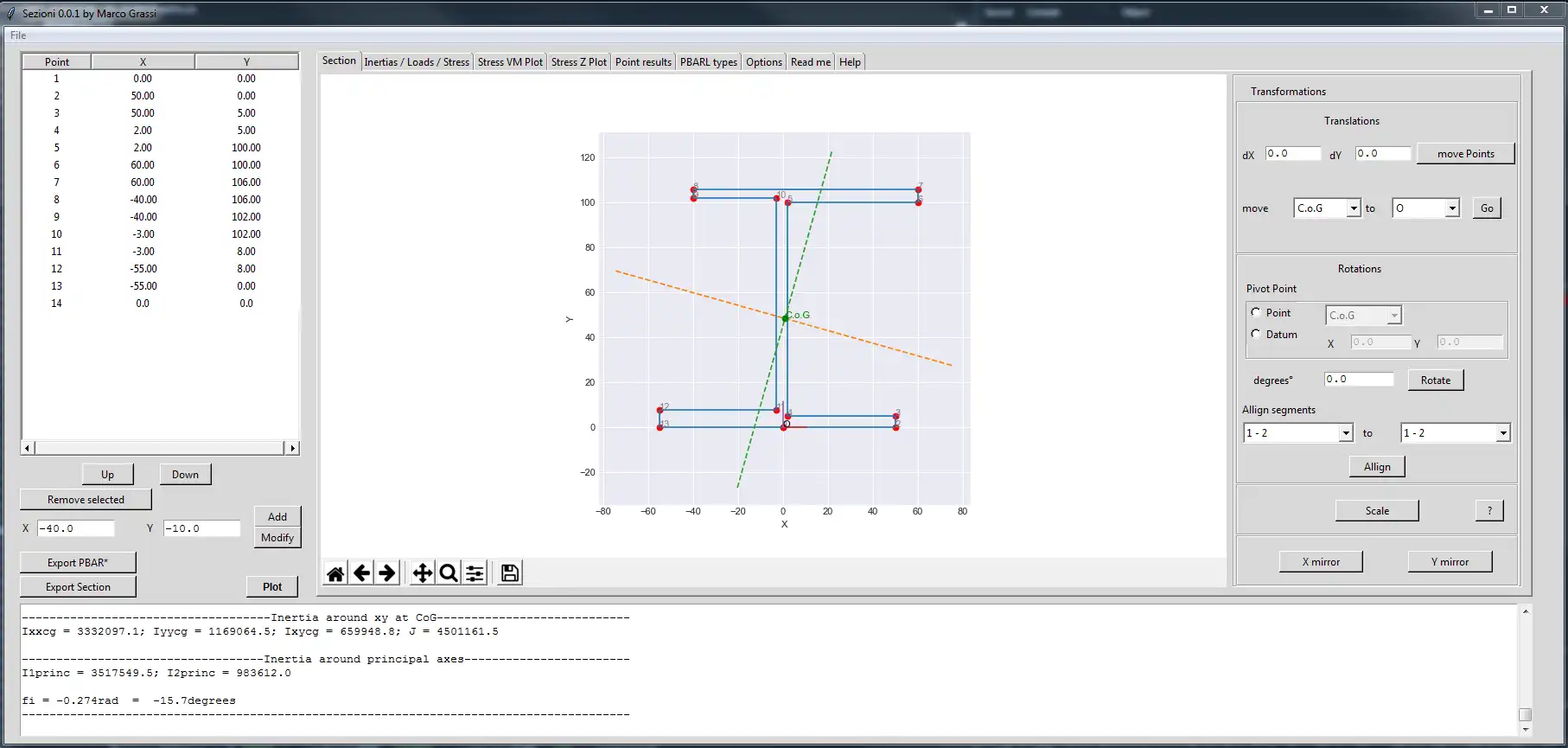

The section can be imported or input by points and then can be modified moved, rotated etc..
Area and section inertia can be exported.

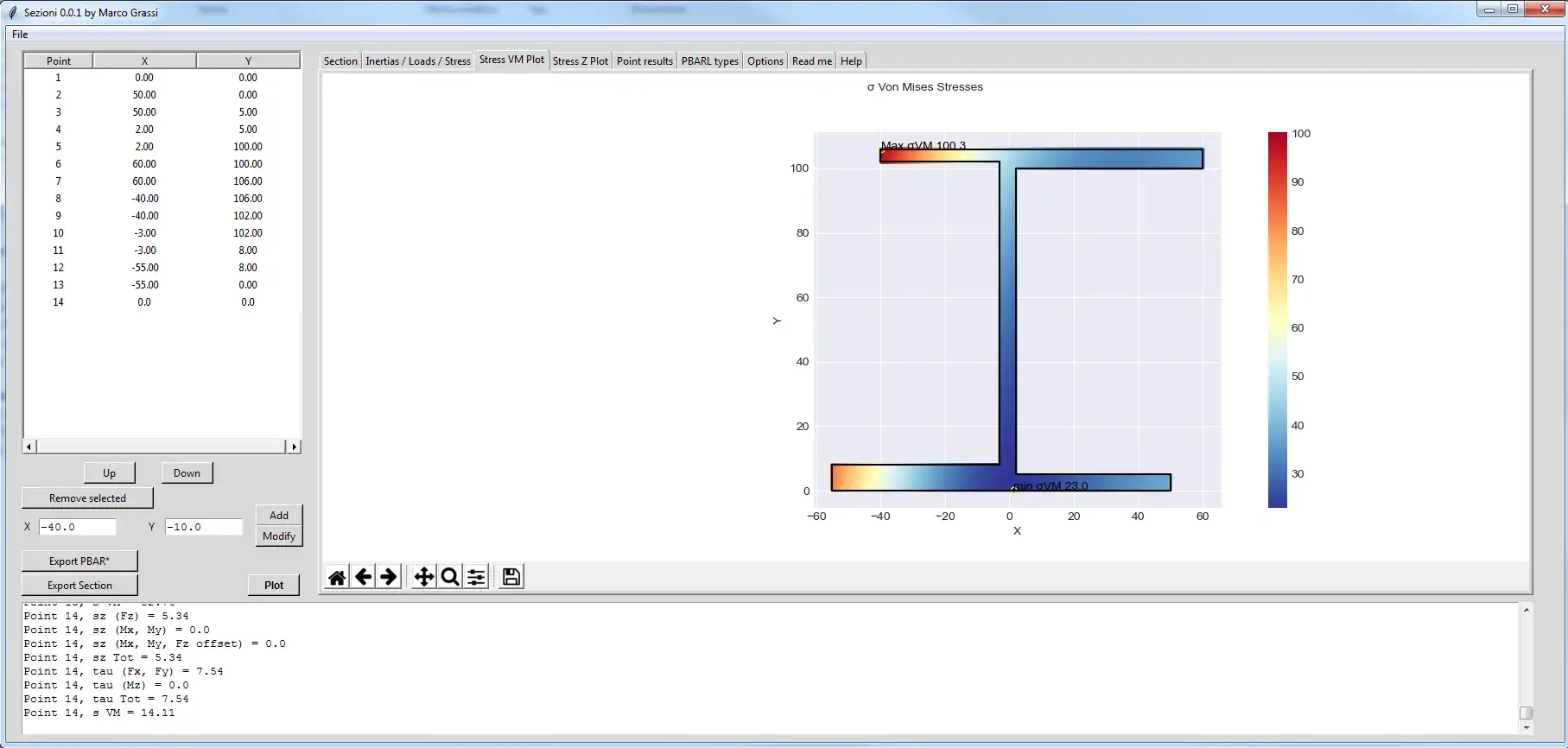

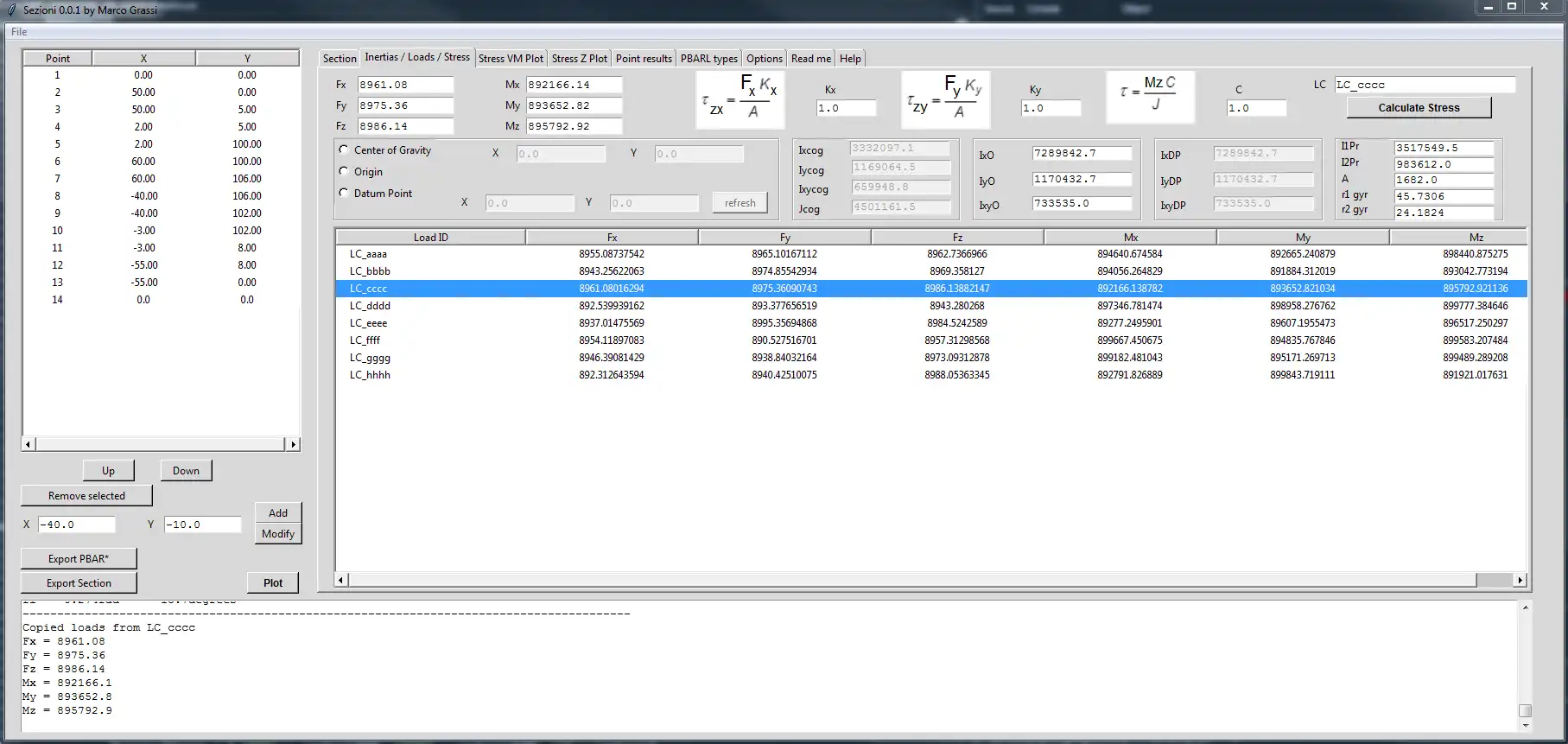

Loads can be applied (multiple load cases can be imported) and the related stresses are calculated by mean of De Saint Venant formulas. Results are plot with selectable color maps.

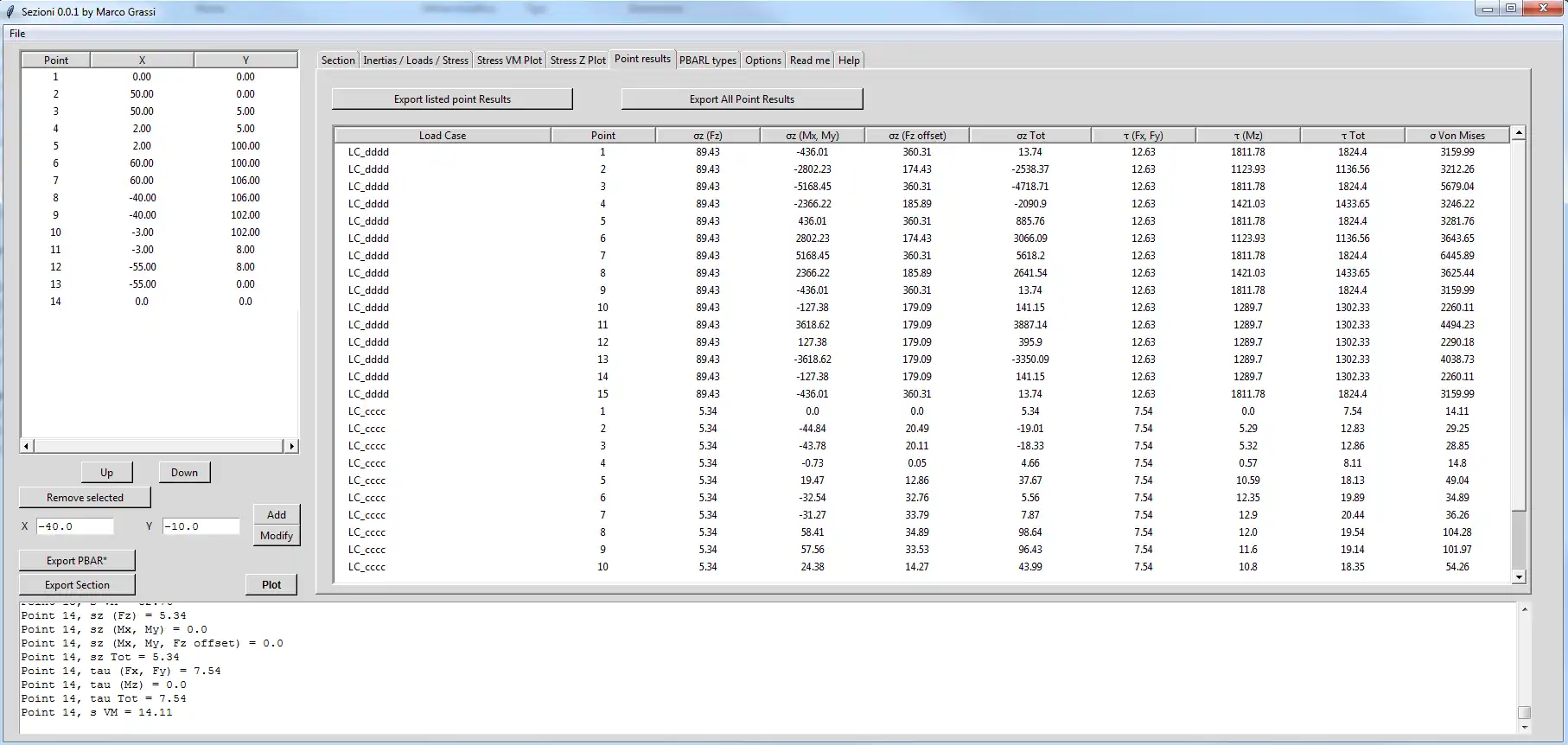

Point results are listed and may be exported.

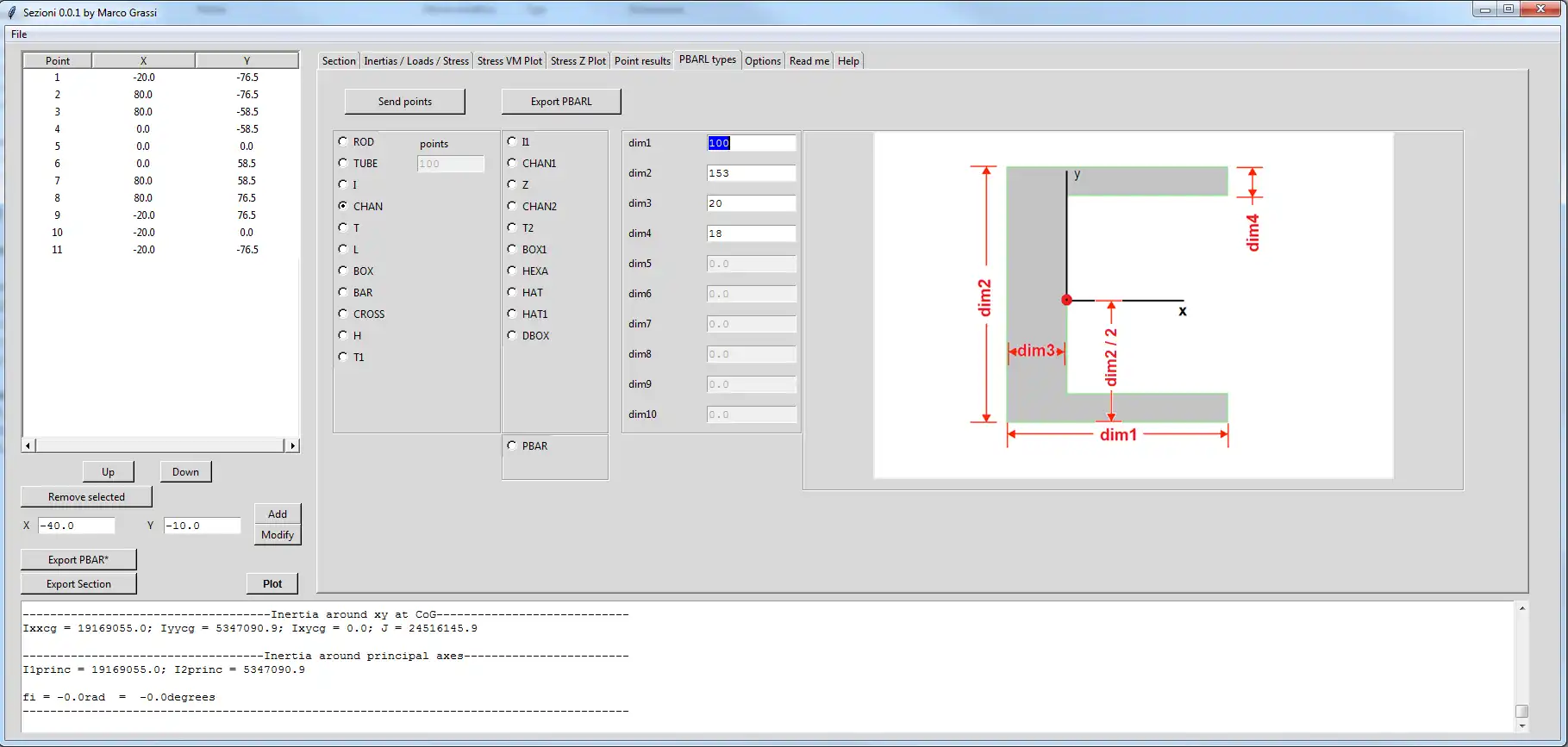

Section can be also input in Nastran style and then exported to a .bdf format file.
Features
- Inertia properties calculation
- Any section is calculated
- Section stresses in color maps
- Section in Nastran style also
- Tkinter windows, matplotlib graphics
Audience
Aerospace, Education, Automotive
User interface
Tk
Programming Language
Python
