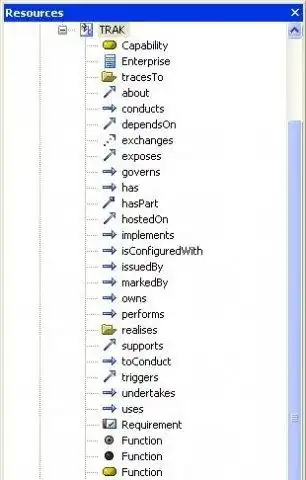

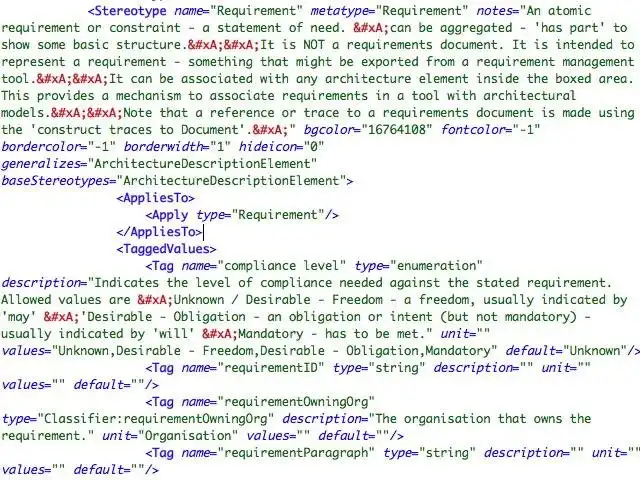

SCREENSHOTS
Ad
TRAK UML Profile
DESCRIPTION
UML (TRAK) and SysML (TRAK_SYSML) profiles for the TRAK open source architecture framework that provides the objects and relationships needed for implementation of TRAK in a UML enterprise architecture modelling tool. TRAK is a general systems enterprise architecture framework based on MODAF.
Features
- implements TRAK (general purpose systems-based architecture framework)
- adds TRAK object types & relationships for any UML enterprise architecture modelling tool
- also adds representation using SysML elements (work in progress)
- used in conjunction with TRAK architecture viewpoints (https://sf.net/p/trakviewpoints) & TRAK metamodel (https://sf.net/p/trakmetamodel)
- See https://sourceforge.net/projects/trak/ , https://sourceforge.net/projects/trakmetamodel/ and https://sourceforge.net/projects/trakviewpoints/
Audience
Aerospace, Government, Healthcare Industry, Science/Research, End Users/Desktop, Engineering
