This is the Linux app named Webmin - Dahdi HW module whose latest release can be downloaded as dahdiHW-0971.wbm.gz. It can be run online in the free hosting provider OnWorks for workstations.
Download and run online this app named Webmin - Dahdi HW module with OnWorks for free.
Follow these instructions in order to run this app:
- 1. Downloaded this application in your PC.
- 2. Enter in our file manager https://www.onworks.net/myfiles.php?username=XXXXX with the username that you want.
- 3. Upload this application in such filemanager.
- 4. Start the OnWorks Linux online or Windows online emulator or MACOS online emulator from this website.
- 5. From the OnWorks Linux OS you have just started, goto our file manager https://www.onworks.net/myfiles.php?username=XXXXX with the username that you want.
- 6. Download the application, install it and run it.

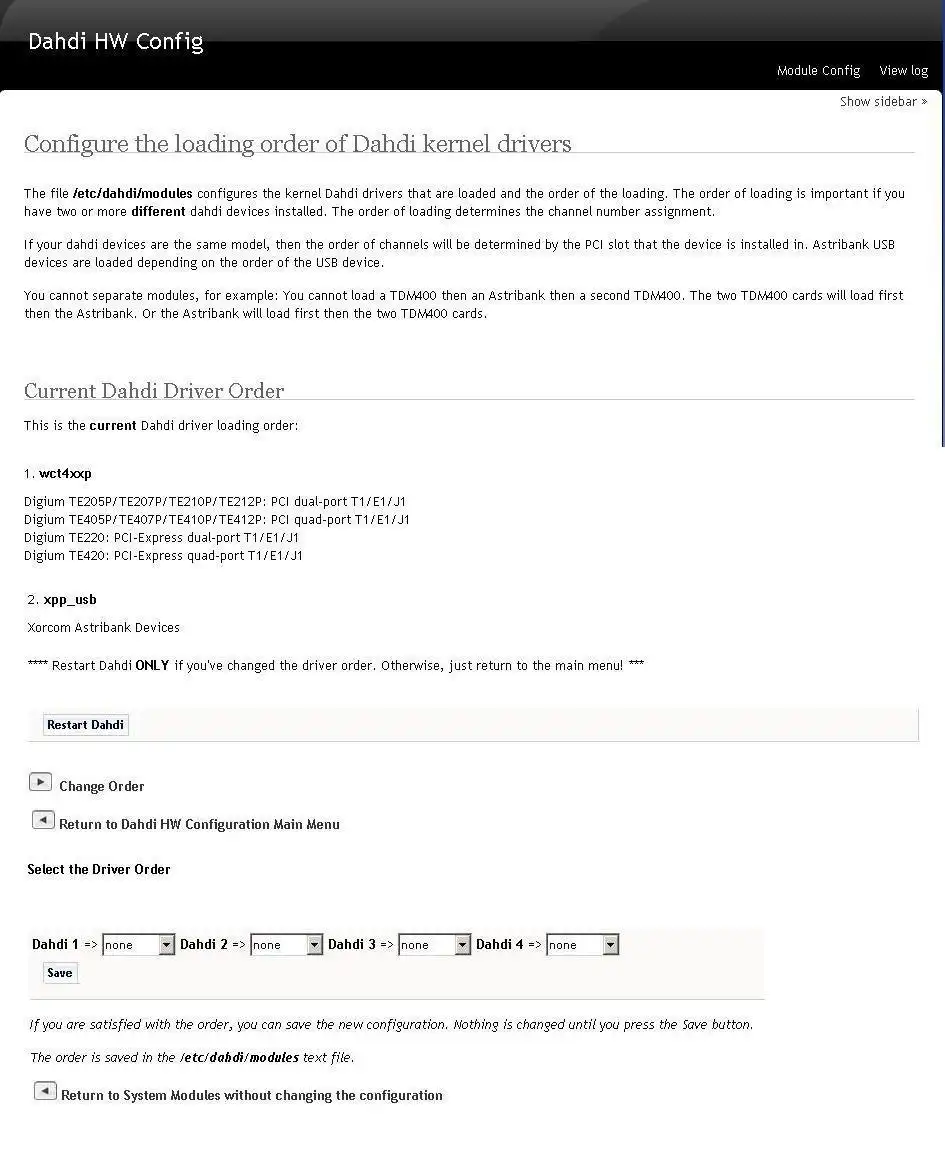

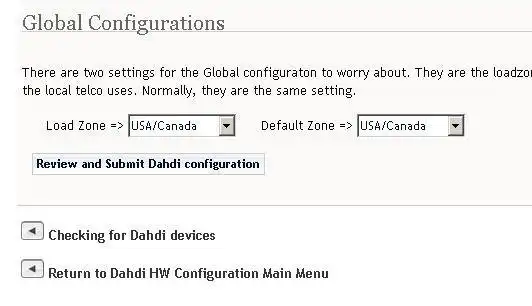

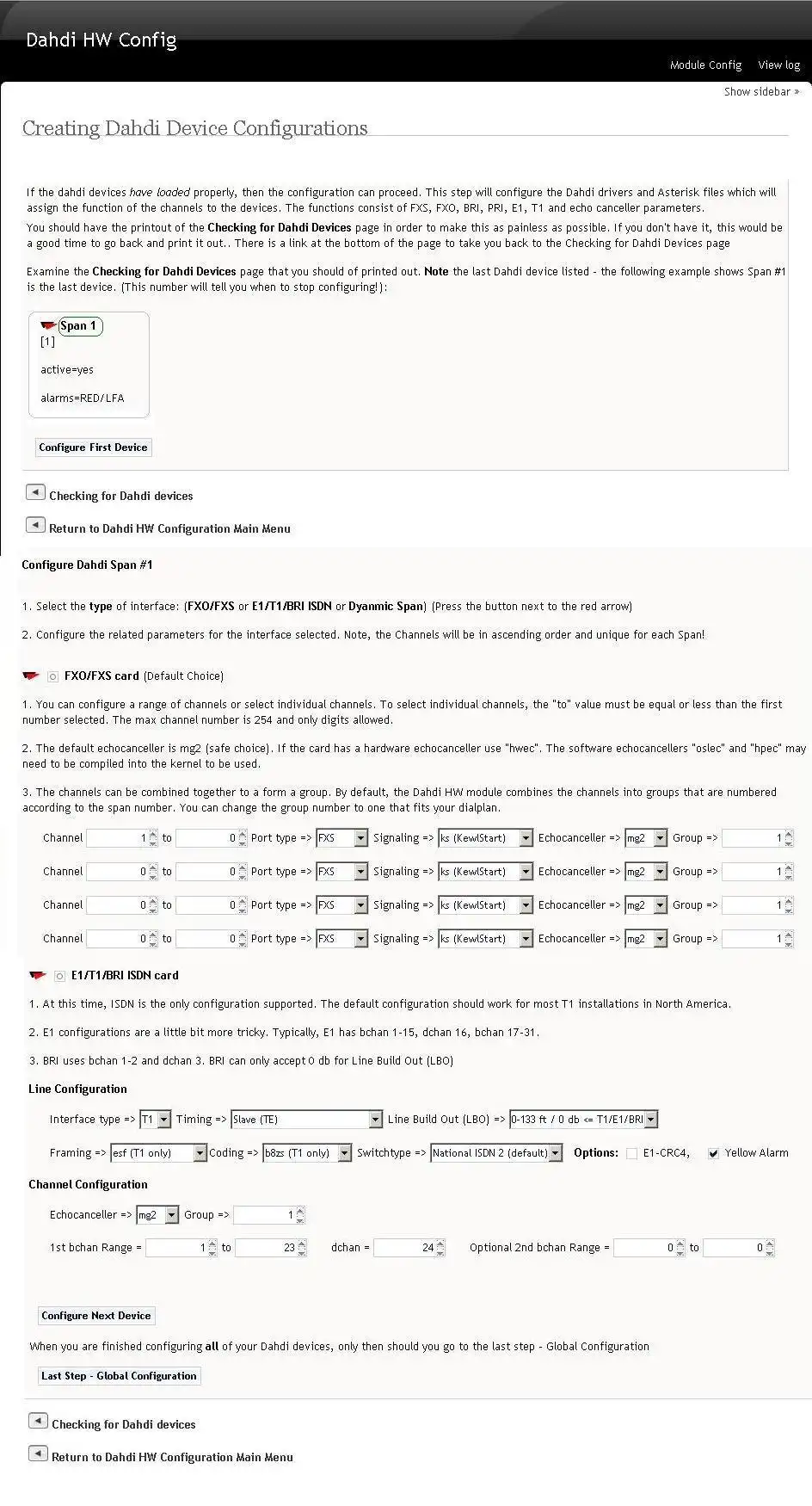

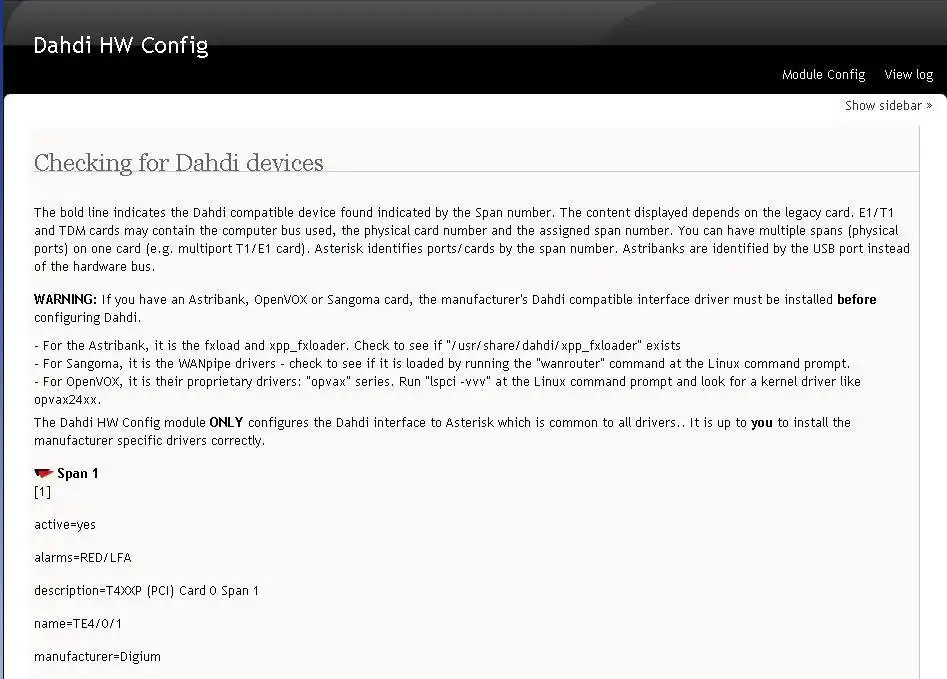

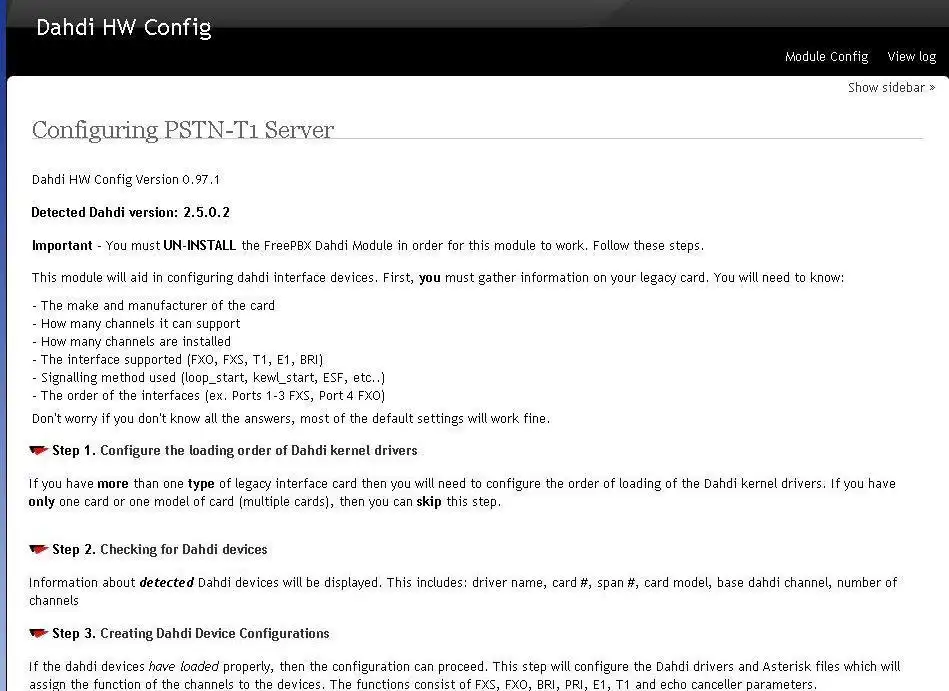

SCREENSHOTS
Ad
Webmin - Dahdi HW module
DESCRIPTION
The legacy telephony interface to the open source Asterisk PBX is the Digium Asterisk Hardware Device Interface (Dahdi). The legacy interfaces can be FXS, FXO, ISDN BRI, T1 over USB, T1, E1 ISDN PRI and TDMoE (Dynamic Dahdi) ports.This Webmin module aids in configuring the legacy hardware devices to Asterisk PBX. Webmin was chosen because Webmin is a mature web based GUI platform that concentrates on the hardware side of a server. Webmin allows controlled secure root access to the hardware. Other web based GUIs concentrate on the software side of configuring Asterisk and do not provide root access directly.
For the latest information on installing the module in FreePBX go to the Wiki - How to Install page
Features
- Lists the order of Dahdi device driver loading for multiple different Dahdi compatible cards
- Can modify the order of Dahdi device driver loading.
- Allows the user to assign the Dahdi channel order to specific cards
- Displays Dahdi compatible devices found by the kernel
- Configures FXS, FXO, BRI, E1, T1, channels
- Configures /etc/dahdi/system.conf and /etc/asterisk/chan_dahdi_trunk.conf simultaneously
- Backups original files in case things break
- Aids in troubleshooting failed configs
Audience
Telecommunications Industry
User interface
Web-based
Programming Language
Perl
This is an application that can also be fetched from https://sourceforge.net/projects/dahdihwmodule/. It has been hosted in OnWorks in order to be run online in an easiest way from one of our free Operative Systems.
