A2L Build for MCD - AutoExtractGui
DESCRIPTION

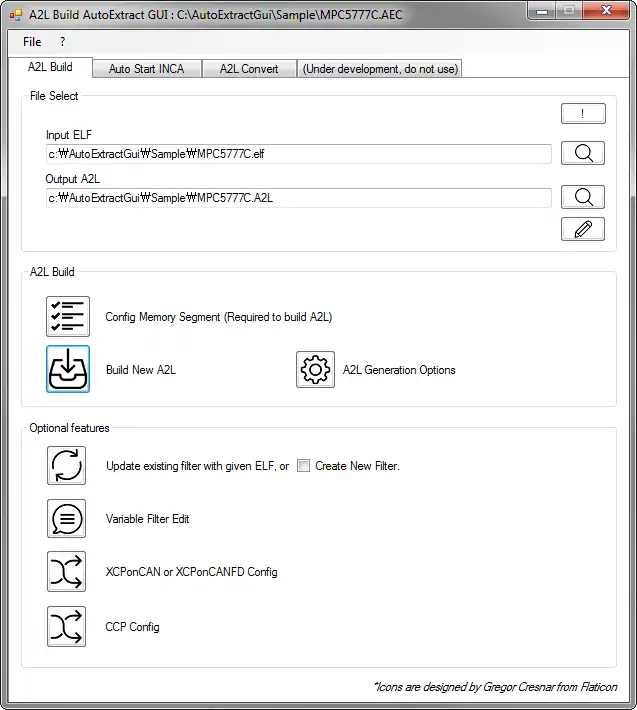

1. A2L Builder : AutoExtractGui
This tool is to help Measurement & Calibration people (e.g. INCA users) create their own A2L easily.

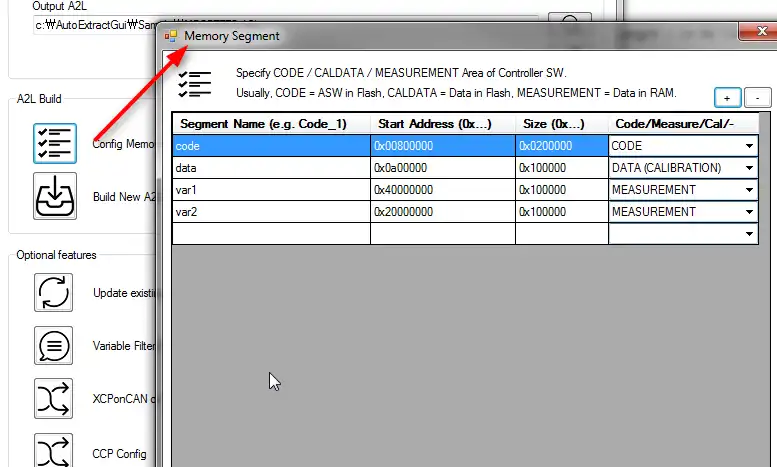

- Please describe the MEMORY SEGMENT : this is mandatory part.

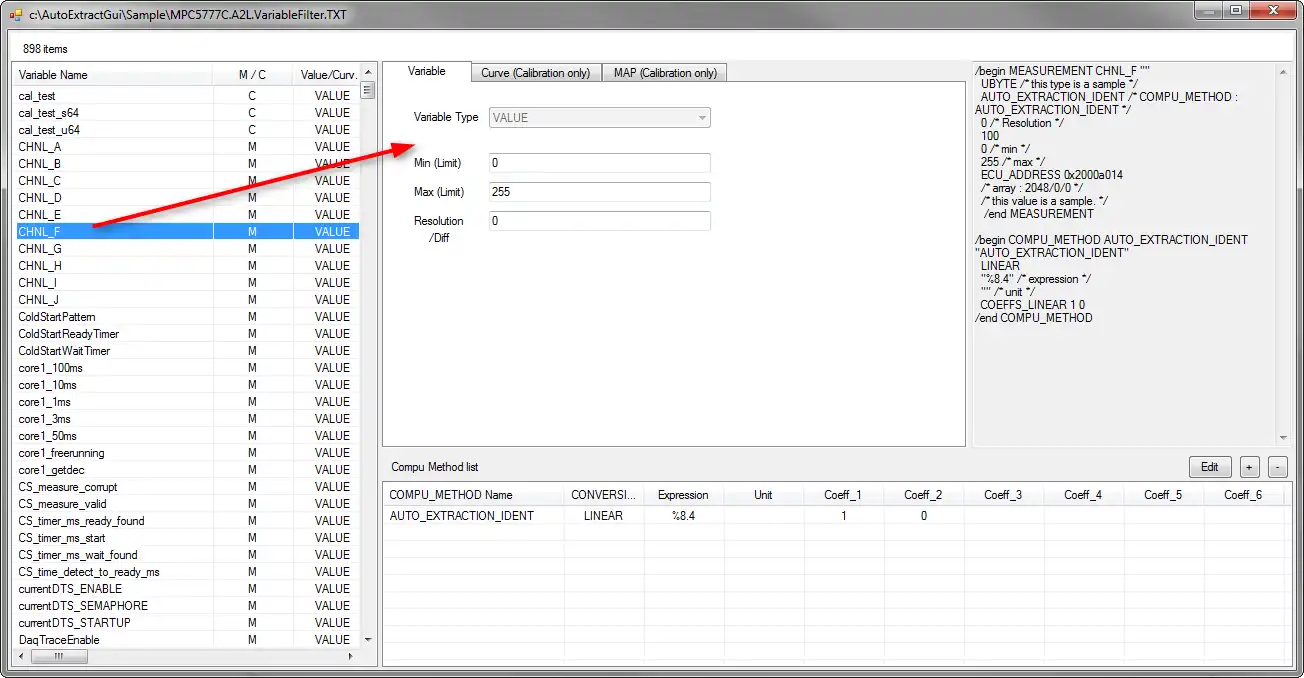

- Optionally you may describe formula / min / max / unit / ... for variables.
- Optionally you may describe communication specification like XCP, CCP, CAN BPS, ...
- Press "Build New A2L" button to make a new A2L for the given ELF file.
As a reference, you may see how this tool works with the given sample files (sample AEC, ELF, A2L).
2. ProF Builder
This tool is to help people who need to make their own ProF script to FLASH their controllers through INCA.
You can utilize "template" of XCP or UDS when you need to make a new ProF script.
3. INCA Instrument SDK Sample Project
As a sample, I upload an Instrument project - displaying bar graph.
4. A2L Hint
Help you easily read/browse A2L file, also give you some hints.
Features

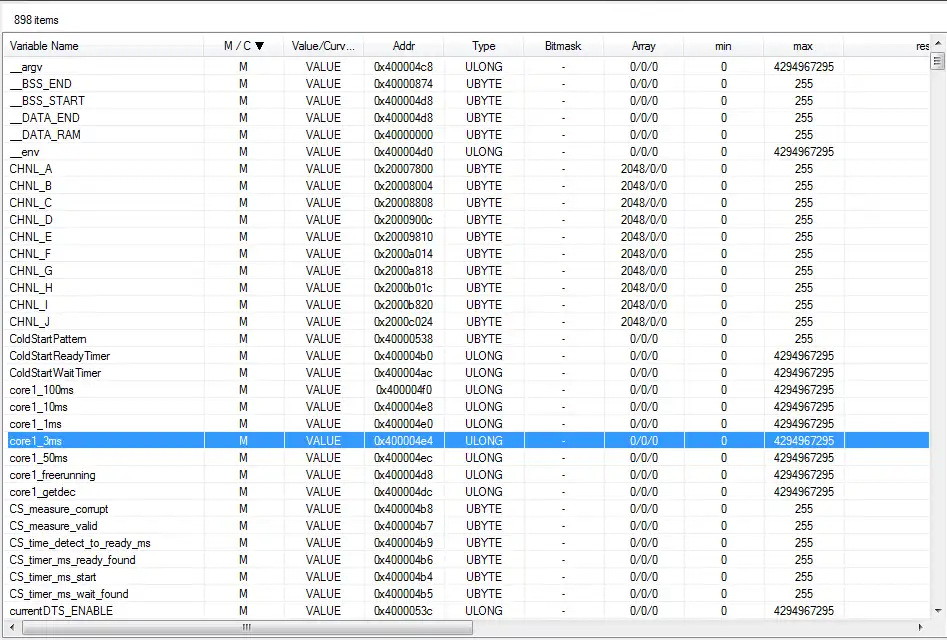

- Read ELF, get variable information
- Create A2L

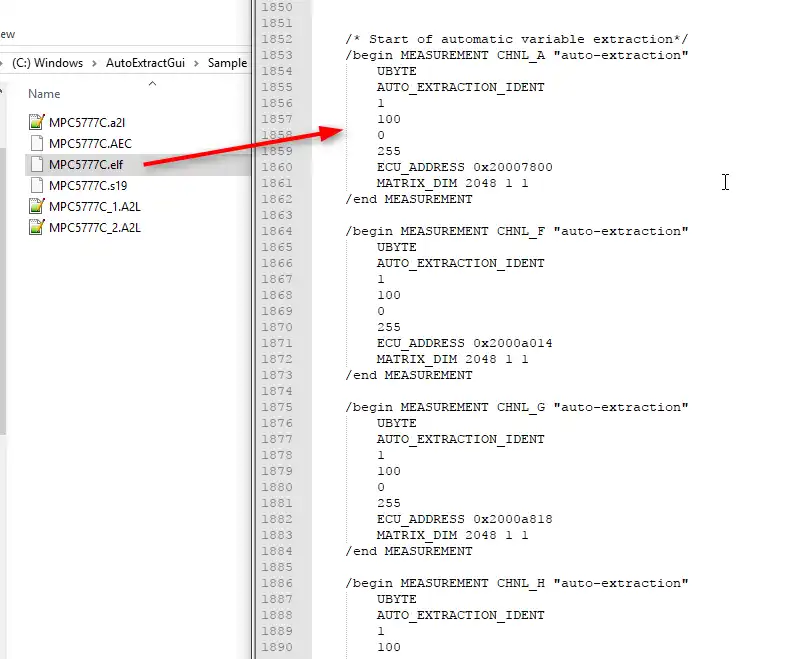

- Update A2L by keyword "Address_of:VARIABLE_NAME"
- Add A2L & HEX to INCA, Perform ProF Flashing, start Measurement & Recording Automatically
- Beautify A2L (reset Tab)
- Check /begin & /end count
- Read A2L
- INCA
- Instrument
- Make A2L
- Build A2L
- A2L
Audience
Automotive
User interface
.NET/Mono
Programming Language
C#, C
