DACx760EVM
DESCRIPTION

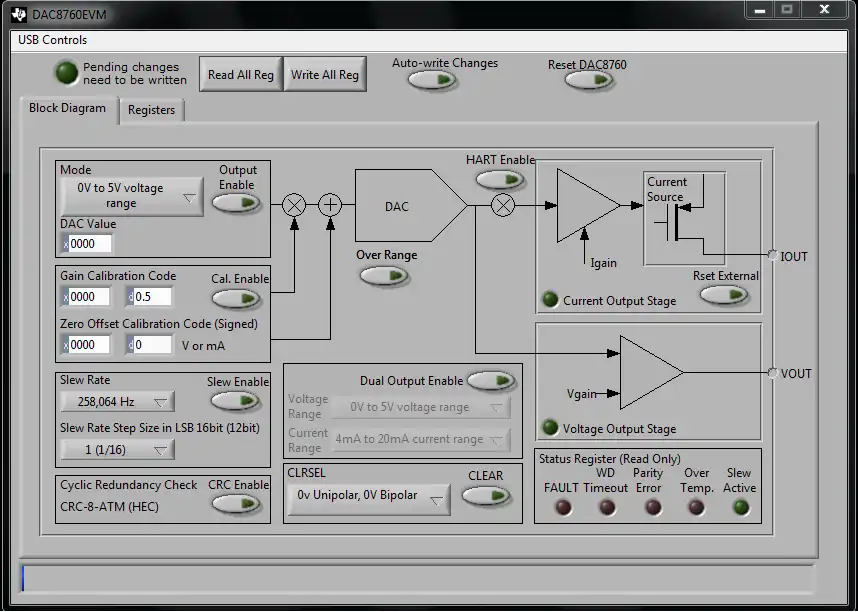

Easy-to-use evaluation software for the DAC8760 and DAC7760 voltage and current output devices from Texas Instruments. The software allows access to all features of the DACx760 family of devices.
Source code for the DACx760 evaluation module software is included. This includes all dependent VIs and build files to generate executable, installer, and source distribution.
Source code for the SM-USB-DIG firmware is included where all mnemonic command detail can be discovered or modified if the SM-USB-DIG is used independent of the DACx760 evaluation module.

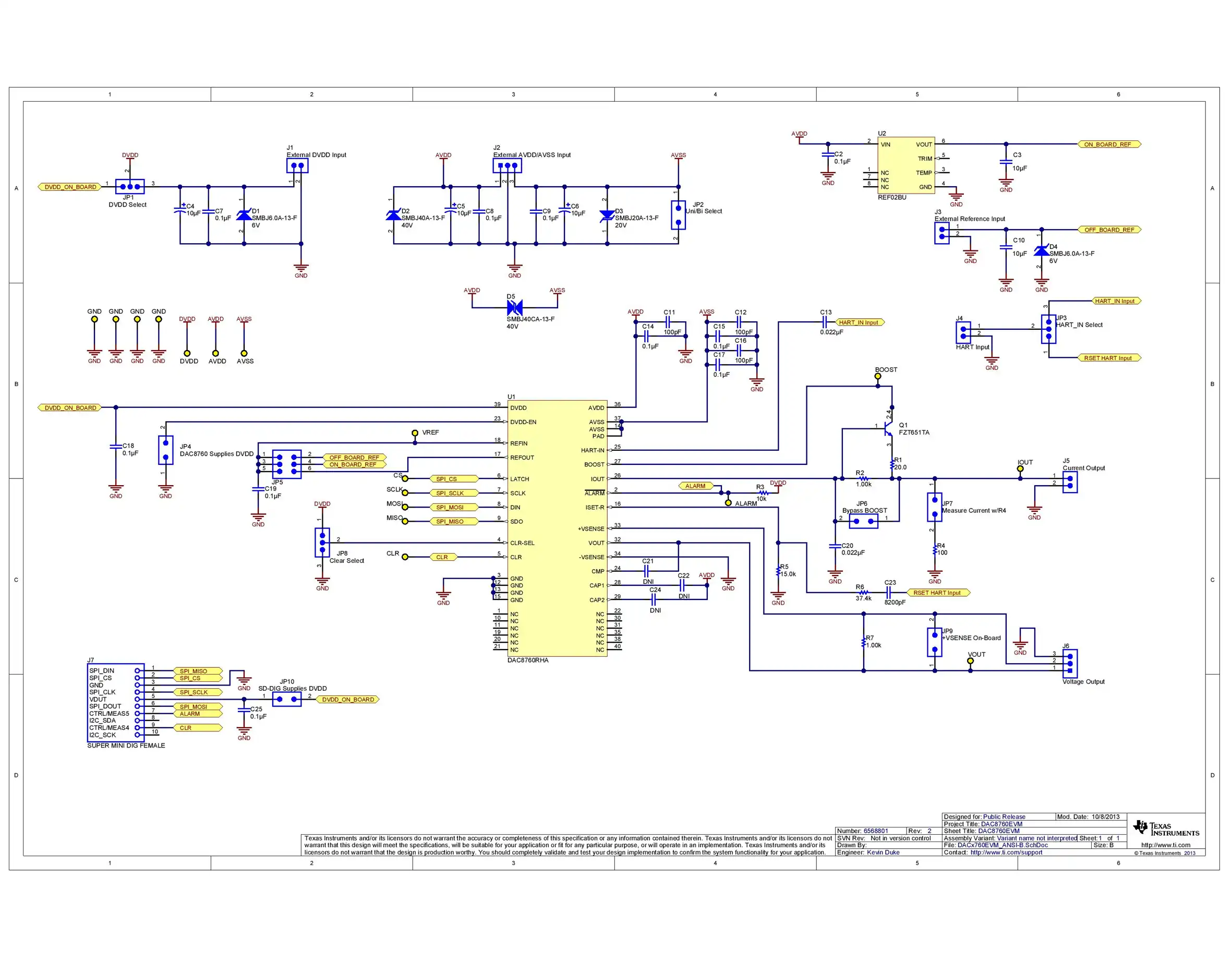

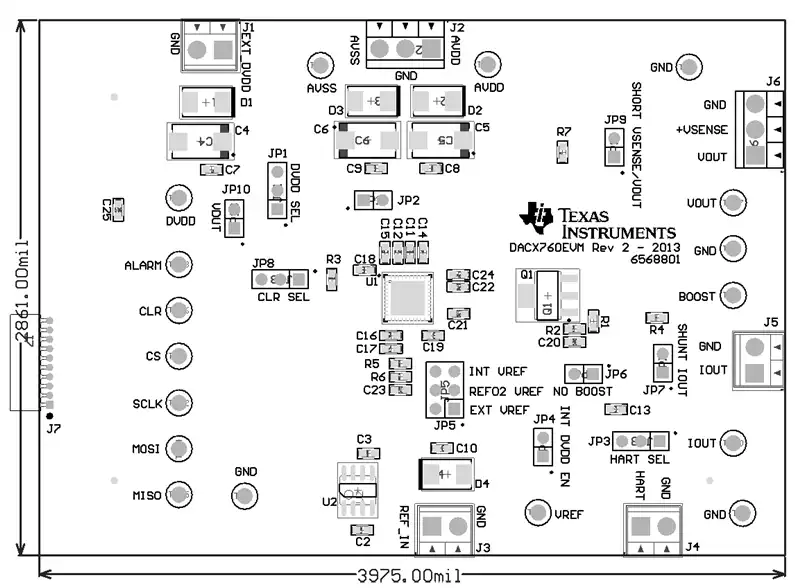

Finally, GERBER files and Altium PCB project files are available for download to be used as a platform to start other projects.
Features
- Easy to use evaluation software for DACx760
- Complete access to all DAC8760 features
- Low level register or high level block diagram views
- Plug-and-play USB-SD-DIG driver
- Open-Source software and firmware
- Altium PCB Project and GERBER files available for download
Audience
Engineering
Programming Language
LabVIEW
