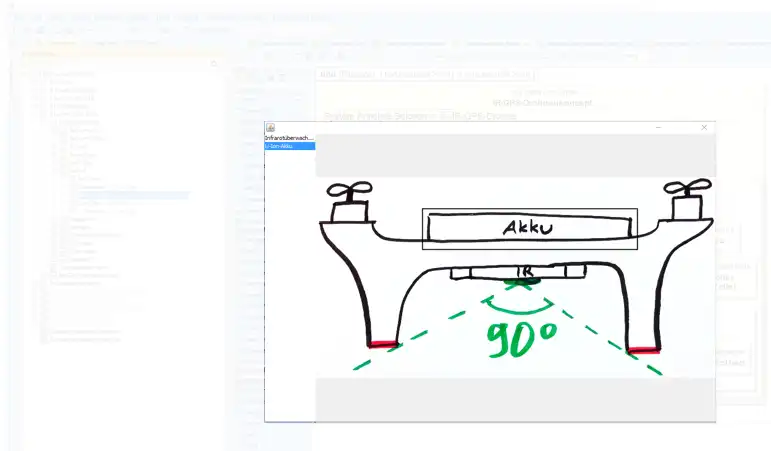

SCREENSHOTS
Ad
FreeSketches for MagicDraw / CSM
DESCRIPTION
A Plugin to use Free Sketches with SysML Models with MagicDraw or Cameo Systems Modeler (both by NoMagic) to support model-based systems engineering (MBSE) activities.

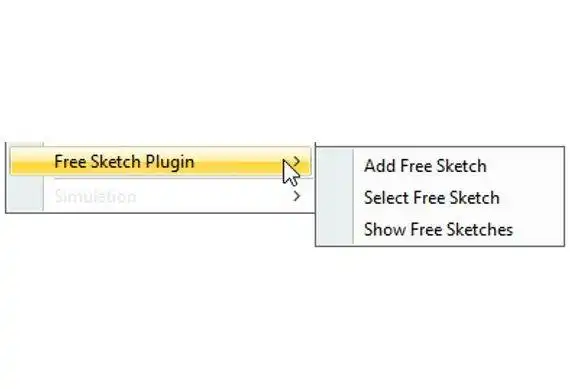

The main software features are explained in the 'Help & Info'-Window, which is accessible via the Menu at "Free Sketch Plugin" >> "Help & Info”.
Additional information on the approach to use sketch snippets can be found in publications:
G. Moeser, A. Albers and S. Kümpel, „Usage of Free Sketches in MBSE“, in Proceedings First IEEE International Symposium on Systems Engineering, Rom, 2015
Link: https://doi.org/10.1109/SysEng.2015.7302511
A. Albers, G. Moeser and M. Salihoglu, „Vernetzen von freien Skizzen in SysML Systemmodellen zur Unterstützung der Konstrukteurstätigkeit“, in 15. Gemeinsames Kolloquium Konstruktionstechnik, 2017.
Features
- Link model elements to sketch snippets
- navigate via sketches to other model elements
