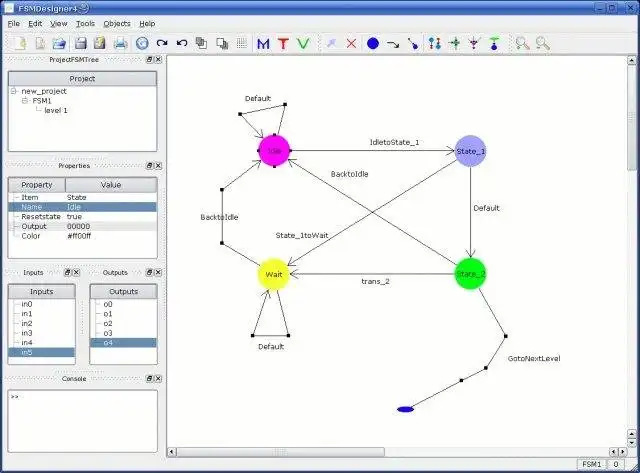

SCREENSHOTS
Ad
FSMDesigner
DESCRIPTION
FSMDesigner is a C++ based implementation for a Finite State Machine (FSM) design tool with integrated Hardware Description Language (HDL) generation. FSMDesigner4 uses the Simple-Moore FSM model guaranteeing efficient fast complex control circuits.
Features
- Create finite state machines for your hardware projects
- comfortable and modern GUI
- export your FSM to Verilog HDL or VHDL
- let FSMDesigner4 support you with your simulation and verification tasks
- export your FSMs for your projects documentation
- FSMDesigner4 generates fast Simple-Moore FSMs to guarantee efficient, high-speed control logic for you hardware
Audience
Developers, Other Audience
User interface
Qt, X Window System (X11)
Programming Language
C++, VHDL/Verilog
