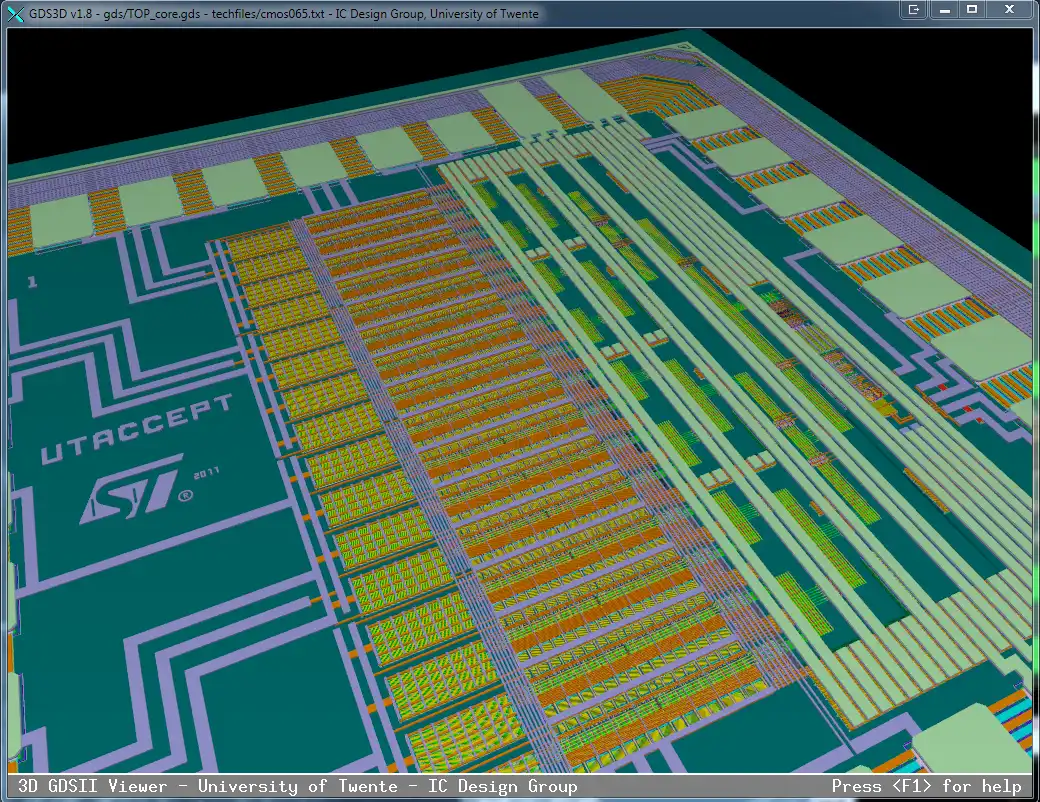

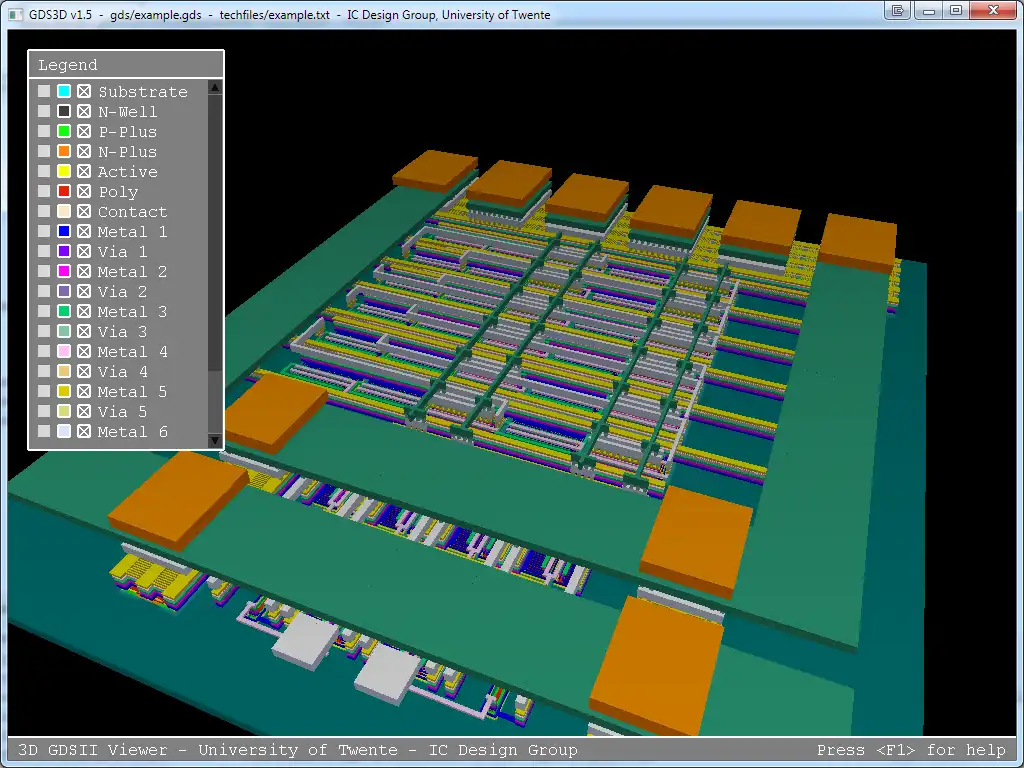

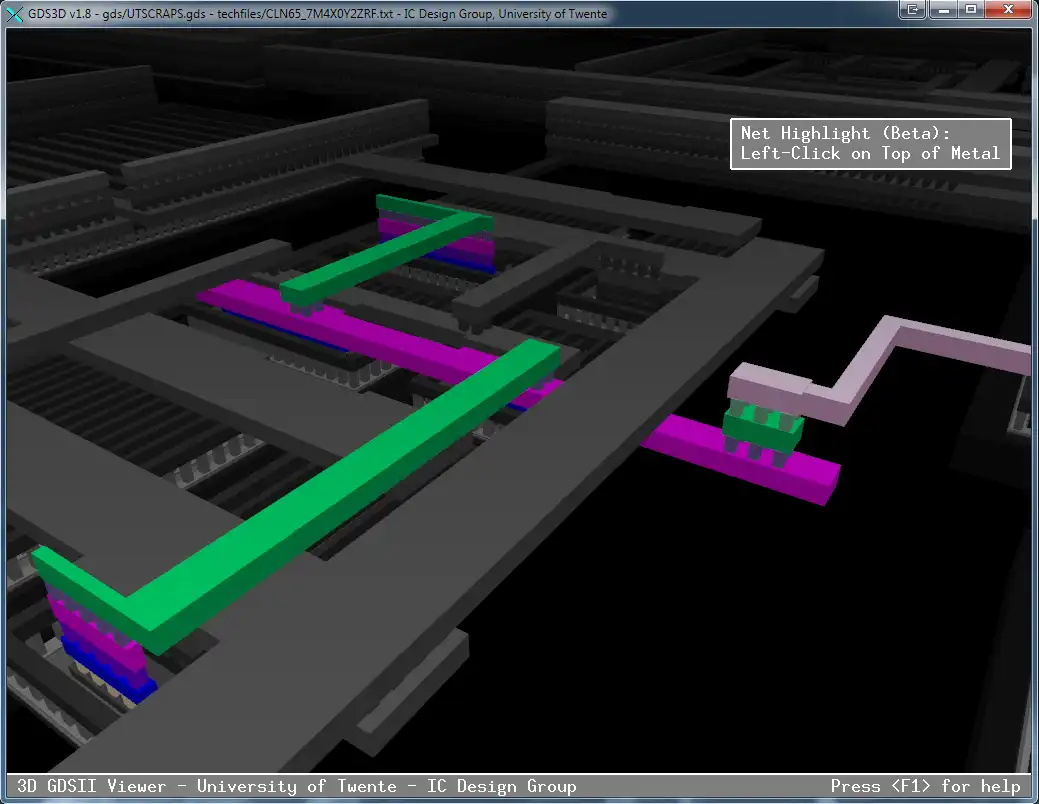

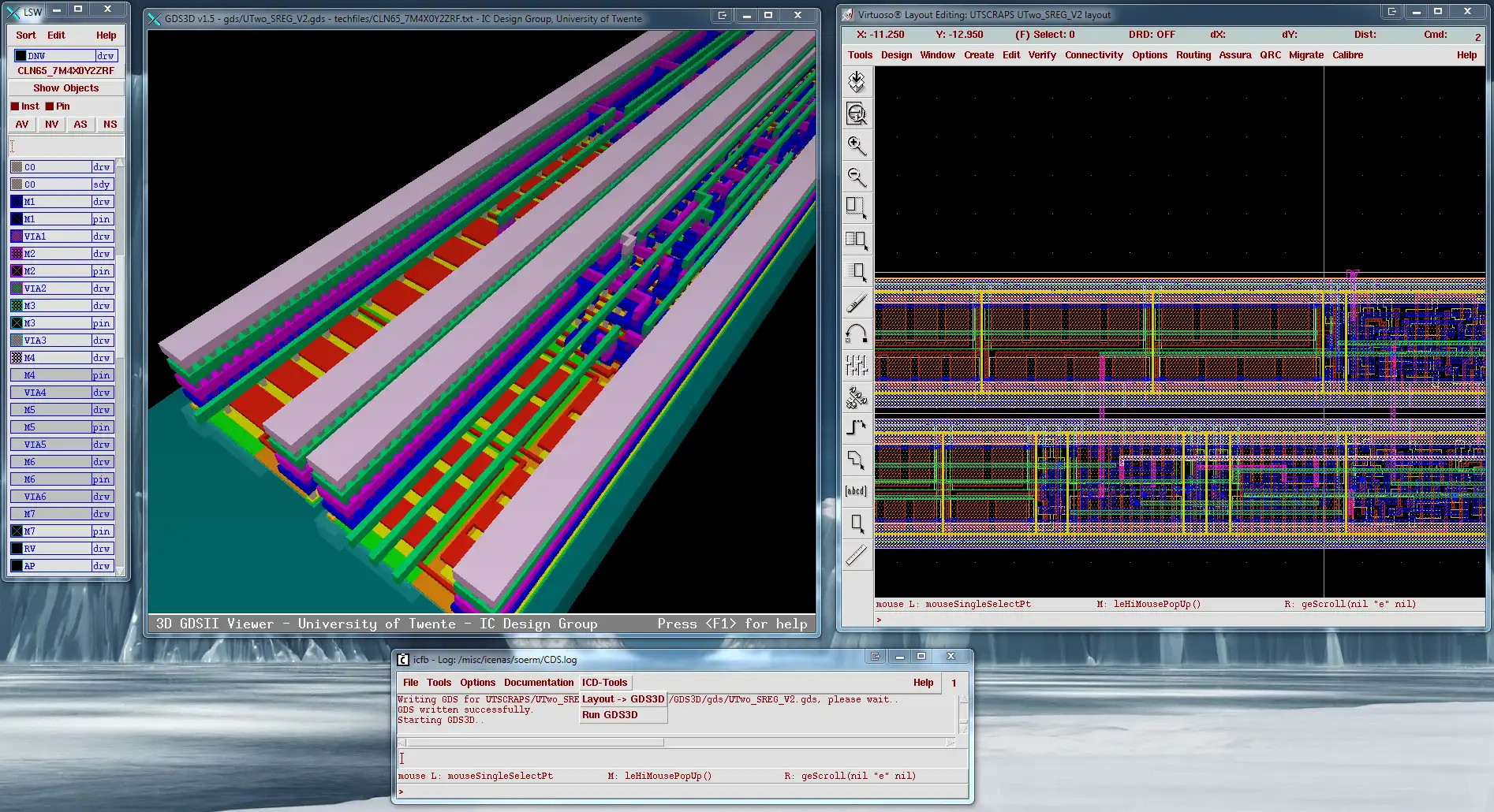

SCREENSHOTS
Ad
GDS3D
DESCRIPTION
GDS3D is a cross-platform 3D hardware accelerated viewer for chip layouts. Read standalone GDS files or use the Cadence plugin for easy integration with your Virtuoso environment.
Developed by PhDs of the IC-Design Group, University of Twente, The Netherlands
The GDS3D project has now moved to: https://github.com/skuep/GDS3D
Features
- Interactive 3D flying through layout
- High performance, high FPS rendering of big layouts on consumer hardware
- Hardware accelerated on many platforms
- GDSII file input
- Enable / disable layers
- Browse through cell hierarchy
- Measurement ruler
- Explode geometry
- Wire tracing
- Cadence plugin
Audience
Science/Research, Telecommunications Industry, Engineering
User interface
X Window System (X11), Win32 (MS Windows), Cocoa (MacOS X)
Programming Language
C++
