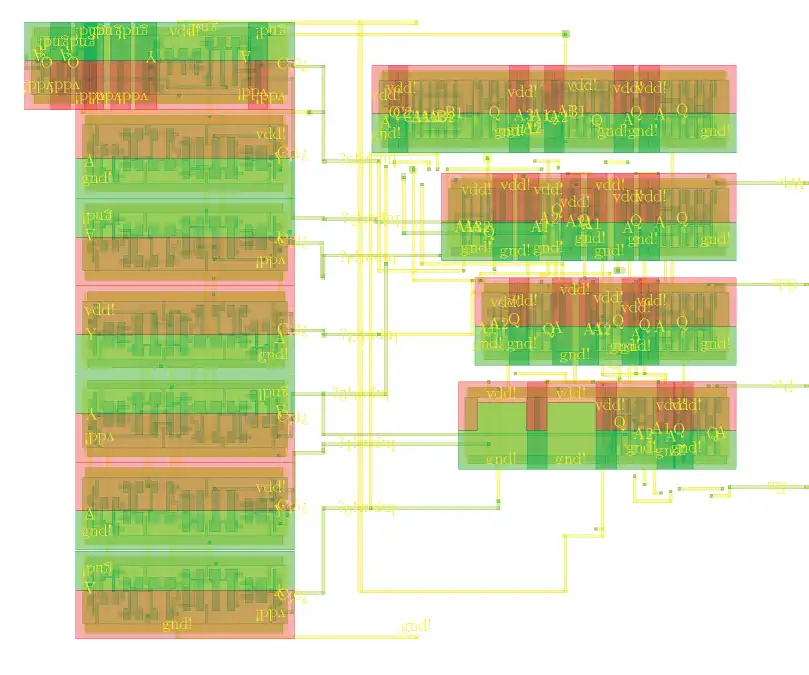

SCREENSHOTS
Ad
graphICs to run in Windows online over Linux online
DESCRIPTION
graphICs is used to visualize IC-layout-data from GDS II-files. It reads a stream of GDS II-records, optimizes it by removing objects smaller than a user-defined minimal size an writes it to Asymptote-code. This code can be translated via Asymptote to PDF, PNG or other formats. The output can be specified to be printed on an A-format paper, portrait or landscape, top/right, center or bottom/left align.To use graphICs you need to download the JAR-file containing the program (no installation needed) and the MAP-file containing the color-information for the design (you can modify it or you create your own).
To create graphic or PDF-files you need to download Asymptote from asymptote.sourceforge.net.
Look at http://sourceforge.net/p/graphicsic/wiki/Usage/ for the Usage.
You can download the actual version of graphICs, an example MAP-file and the Bachelor-Thesis about graphICs on the download page.
Audience
Information Technology, Science/Research, Developers, Testers, Engineering, Automotive
User interface
Command-line
Programming Language
Java
This is an application that can also be fetched from https://sourceforge.net/projects/graphicsic/. It has been hosted in OnWorks in order to be run online in an easiest way from one of our free Operative Systems.
