IEDExplorer
DESCRIPTION
IEDExplorer is an IEC 61850 client tool written for testing and educational purposes. IEDExplorer can connect to an IEC61850 device (also called an IED) over MMS (ISO/IEC9506-1 and ISO/IEC 9506-2) communication protocol. The tool is written in pure C# including the MMS ASN.1 parser (based on BinaryNotes ASN.1 tool) and runs in .net environment, on Windows. Linux/Mono support has been lost on the way (volunteers welcome). See Features for what the tool can do for you.
I will appreciate your help in testing and extending the tool!
Features

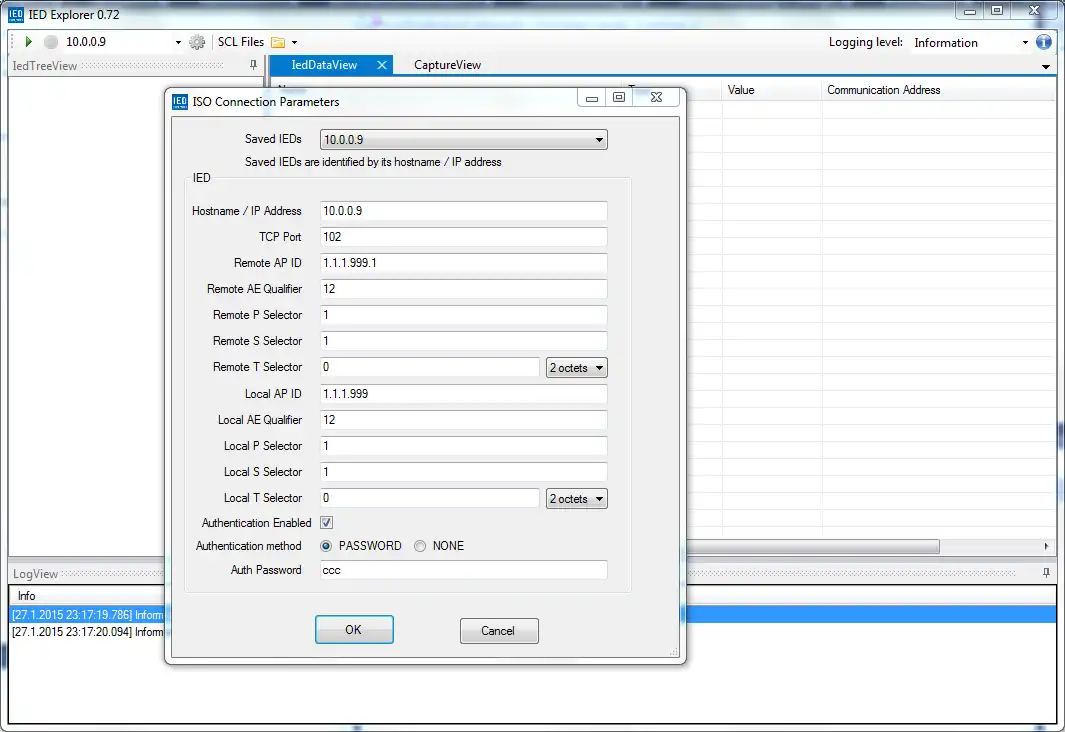

- connect to an IEC61850 device (IED)

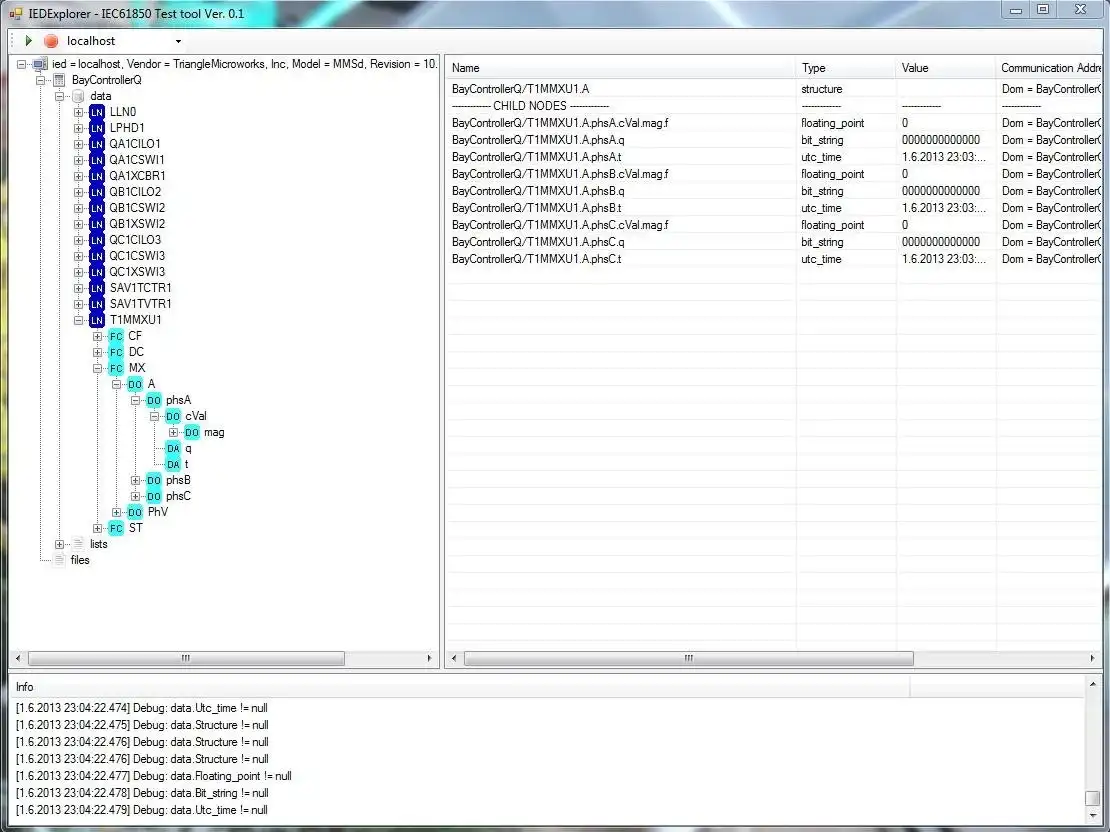

- inspect MMS variables in the tree structure
- read/write values
- issue commands including SBO

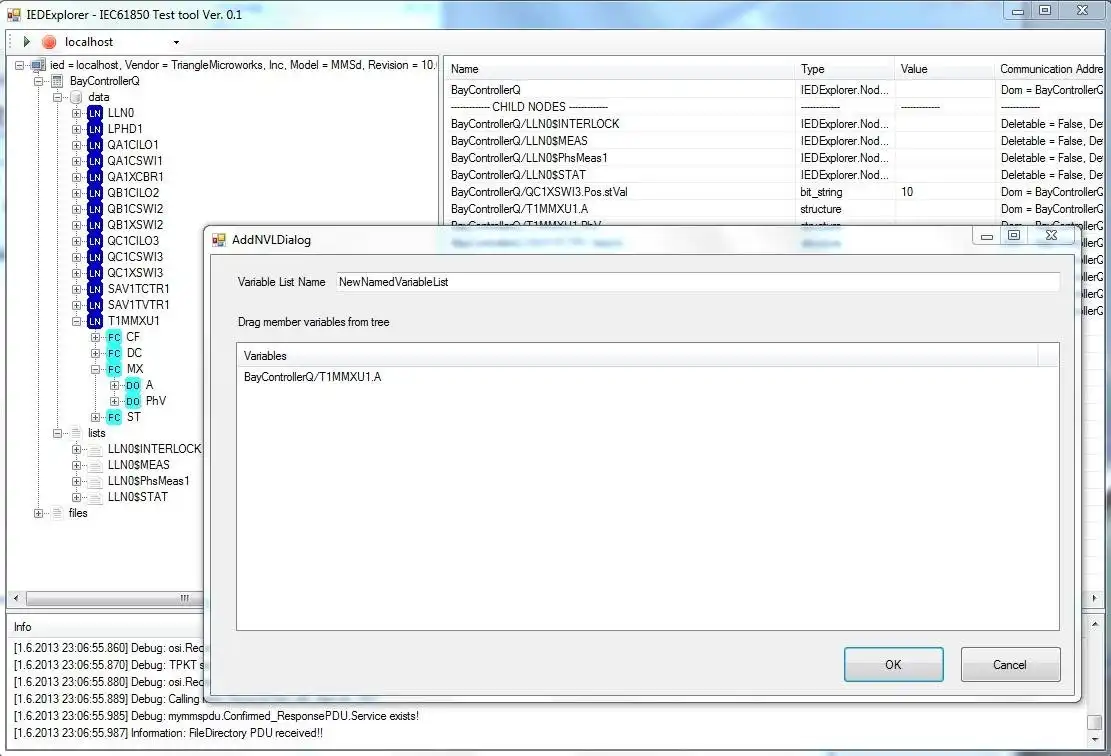

- create or delete dynamic variable lists

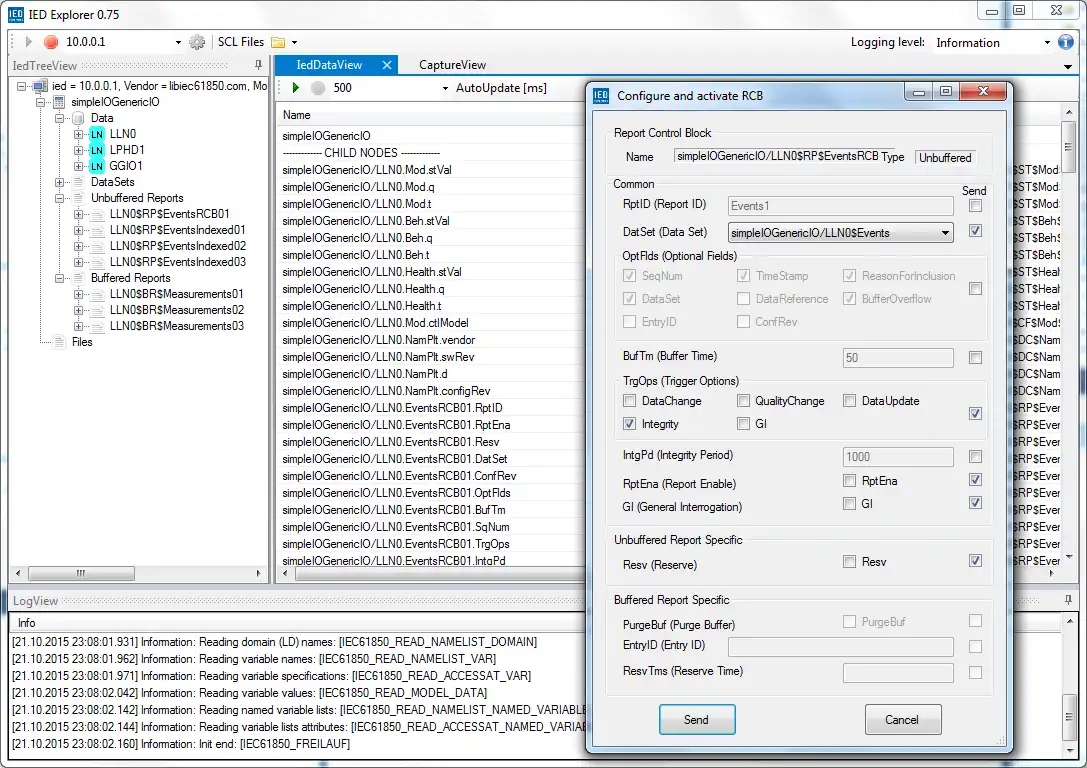

- activate and read un/buffered reports via dynamic or static variable lists
- read directories and files (e.g. for COMTRADE protection event records)

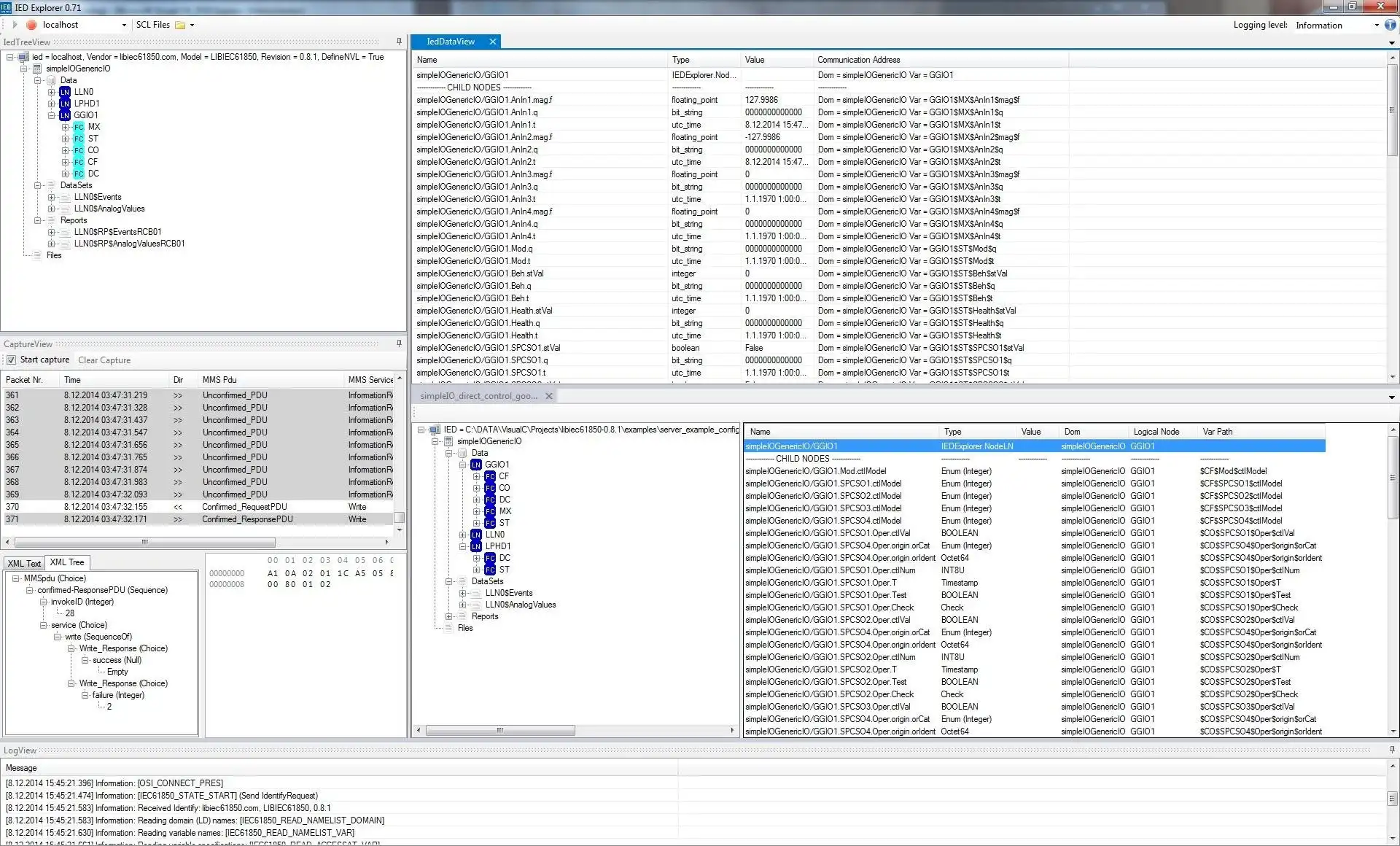

- capture MMS packets, inspect in XML or tree format
- explore GOOSE messages
- send GOOSE messages
- Inspect SCL files
- Simulate IED using SCL data (feature in experimental ALPHA state, using native libiec61850.dll)
Audience
Engineering
User interface
.NET/Mono
Programming Language
C#
