This is the Windows app named ImplicitCAD whose latest release can be downloaded as Release0.4.0.0.zip. It can be run online in the free hosting provider OnWorks for workstations.
Download and run online this app named ImplicitCAD with OnWorks for free.
Follow these instructions in order to run this app:
- 1. Downloaded this application in your PC.
- 2. Enter in our file manager https://www.onworks.net/myfiles.php?username=XXXXX with the username that you want.
- 3. Upload this application in such filemanager.
- 4. Start any OS OnWorks online emulator from this website, but better Windows online emulator.
- 5. From the OnWorks Windows OS you have just started, goto our file manager https://www.onworks.net/myfiles.php?username=XXXXX with the username that you want.
- 6. Download the application and install it.
- 7. Download Wine from your Linux distributions software repositories. Once installed, you can then double-click the app to run them with Wine. You can also try PlayOnLinux, a fancy interface over Wine that will help you install popular Windows programs and games.
Wine is a way to run Windows software on Linux, but with no Windows required. Wine is an open-source Windows compatibility layer that can run Windows programs directly on any Linux desktop. Essentially, Wine is trying to re-implement enough of Windows from scratch so that it can run all those Windows applications without actually needing Windows.

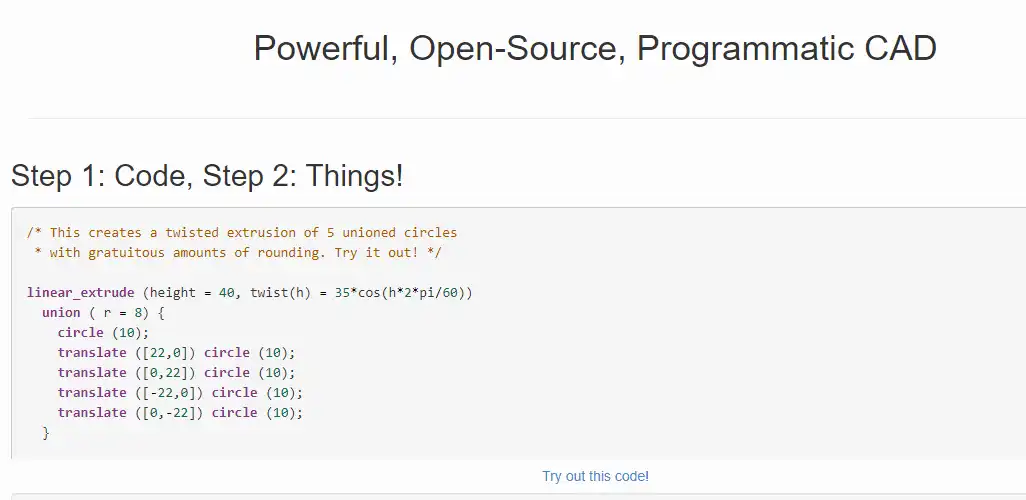

SCREENSHOTS
Ad
ImplicitCAD
DESCRIPTION
ImplicitCAD is a programmatic CAD program, implemented in Haskell. Unlike traditional CAD programs, programmatic CAD programs use text descriptions of objects, as in programming. Concepts like variables, control structures and abstraction are used, just as in programming. With the explosion of 3D printing, designing 3D objects has become an even more important problem. And it's a complicated one. We need to design complicated objects that precisely interface with each other. And often we don't want to just design a single object, but classes of objects, parameterized by variables. And we need to do this in collaboration. Generally, objects in programmatic CAD are built with Constructive Solid Geometry or CSG. Unions, intersections and differences of simpler shapes slowly build the object. ImplicitCAD supports all this and much more! For example, it provides rounded unions so that one can have smooth interfaces between objects.
Features
- Objects can be abstracted and reused
- Repetitive tasks can be automated
- Objects can be designed parametrically
- The usual tools for software development (like version control) can be used
- It also directly provides some GCode generation
- The traditional example of programmatic CAD is OpenSCAD
Programming Language
Haskell
Categories
This is an application that can also be fetched from https://sourceforge.net/projects/implicitcad.mirror/. It has been hosted in OnWorks in order to be run online in an easiest way from one of our free Operative Systems.
