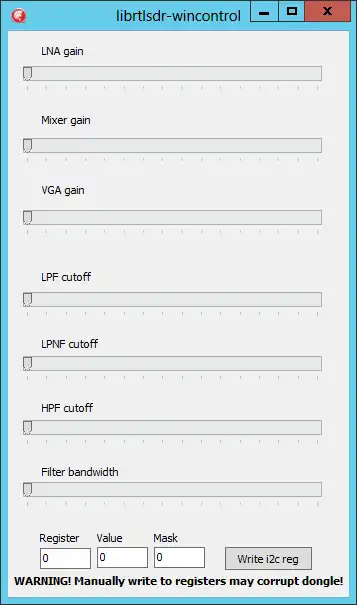

SCREENSHOTS
Ad
librtlsdr-wincontrol
DESCRIPTION
Windows adaptation of https://github.com/gat3way/r820tweak projectUnpack all files to SDRSharp folder, start SDR# playback, then run controller exe file.
Do not forget to allow software to use UDP/32323 port in your firewall.
You may use this rtlsdr.dll with osmocom or other software, of course.
It is fully compatible to original one.
There are UDP server on 32323 port inside of rtlsdr.dll. It accepts and answers \n-terminated strings and accept two easy commands: get and set register. Examples:
g 5\n - will return value of R5
s 7 10 15\n - will set four lowest bits (mask 0x0f) of R7 with value 10
s 12 174 255\n - will write complete byte to R12
All values should be decimal.
You may use this feature to develop own gui controller with beauty knobs.
