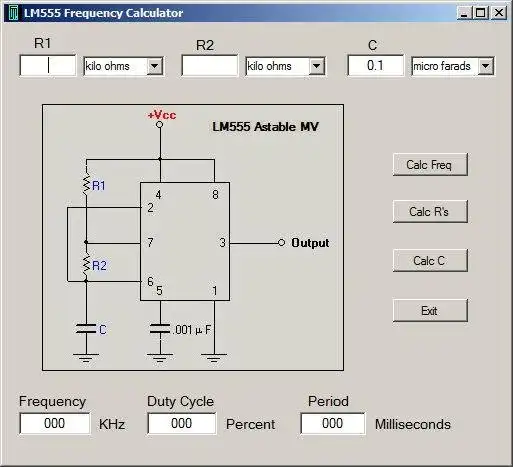

SCREENSHOTS
Ad
LM555 Timer Calculator
DESCRIPTION
Many of us use LM555 timer chips to generate clocks, tones for model trains, and all sort of other uses. Calculating the values of the resistors and capacitor in the timing chain, along with the duty cycle for astable operation is a bit tedious on a calculator so I built this small forms based tool to make it easier. It even has the graphic of the chip and the pin numbers to make it easy to hook things up.
Features
- Graphical parts layout and pin out.
- Calculate any one part or all of them.
- Indicates when frequency is out of ability of chip.
Audience
End Users/Desktop
User interface
Win32 (MS Windows)
Programming Language
C#
