Mach3 Threading Helper
DESCRIPTION

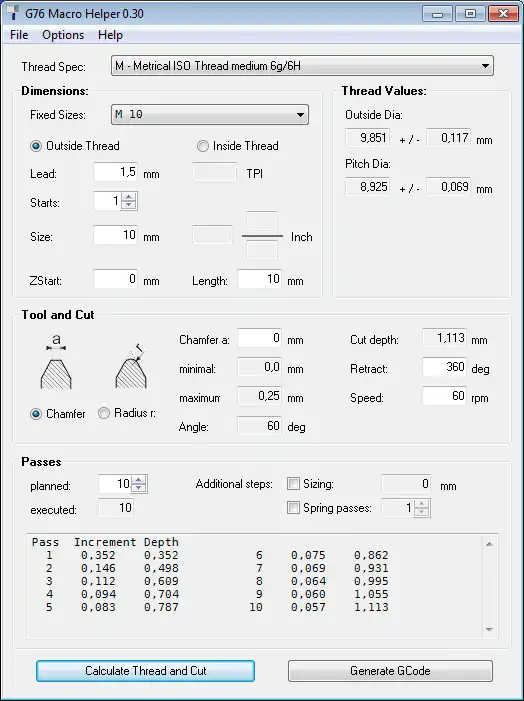

This Application assists the usage for CNC threading, especially the Mach3 software. The threading cycle uses the G76 command with some parameters. This program lets the user select from hundreds of predefined or free definable thread standards and calculates the parameters for the Mach3 command line. So, essentially just select your thread, calculate it, copy & paste the result to a GCode file, hit "Cycle start" and you get exactly what you want.

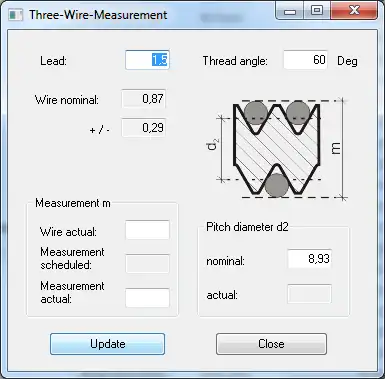

Also included is a little tool to calculate the pitch diameter of a thread based on a measurement with three wires.

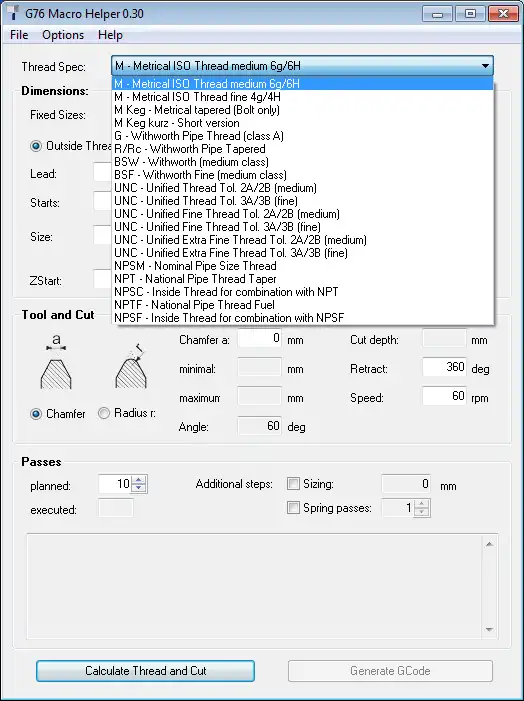

Supports the threading standards M, G, R, BSW, BSF, UNC, UNF, UNEF and tapered Pipe R/Rc and Metrical threads. New: NPSM, NPT, NPTF, NPSC, NPSF.
Includes an improved version of the Mach3 M1076.m1s threading macro and a matching screenset.
Try also the Feed Calculator: www.sourceforge.net/p/feedcalculator
Features
- Windows 32 portable - requires no installation
- Help included
- Mach3 macros
Audience
Engineering
User interface
Win32 (MS Windows)
Programming Language
BASIC
