PeMSyn
DESCRIPTION
Release: PeMSyn 2.4 - 03.Sep.21
Requirements:
- Matlab 2018a or later (with Parallel Computing Toolbox )
- Scilab 6.1.0 or later
- FEMM 4.2 (21Apr2019 or later)

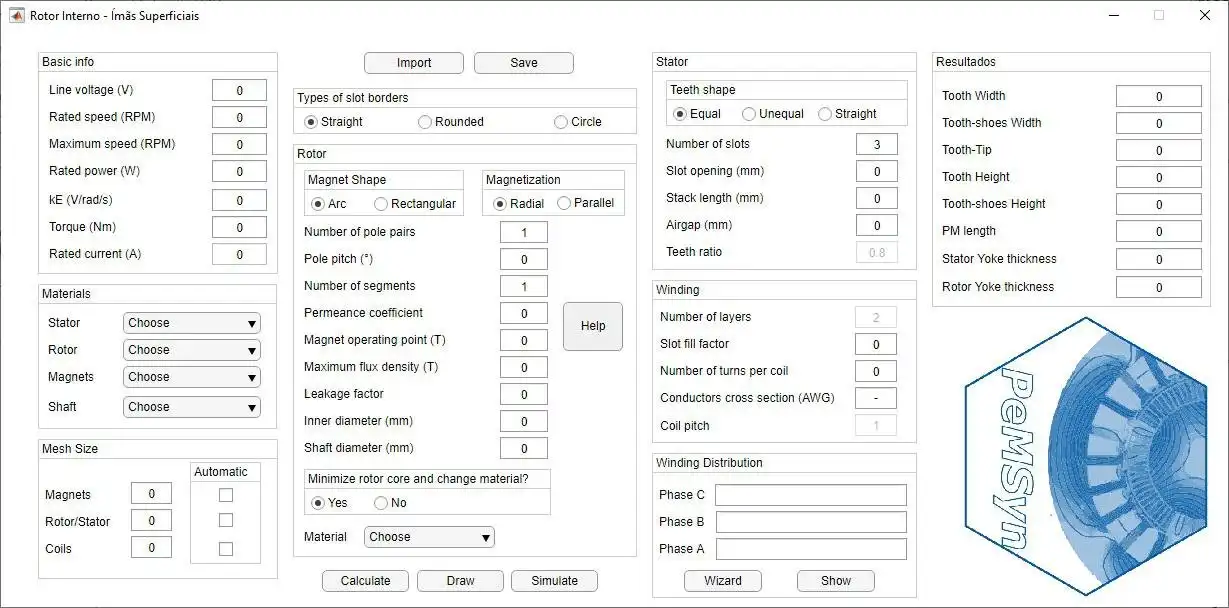

Matlab/Scilab-FEMM based GUI to Assist the Design of Permanent Magnet Machines:

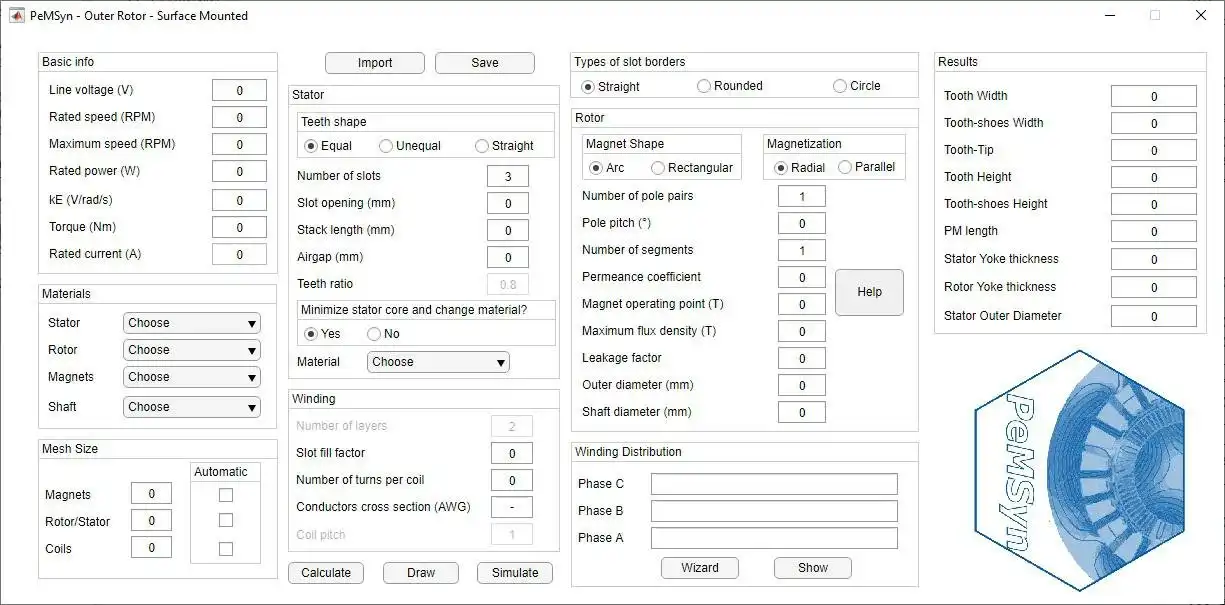

- Surface Mounted PMSM: Inner Rotor / Outer Rotor
- Inset Mounted PMSM: Inner Rotor / Outer Rotor
- Spoke-Type PMSM: Inner Rotor
- Coreless Machine
- Different Slot types available
- Permeance Coefficient Assistant
--- No-Load and On-Load estimation for PC during the design process

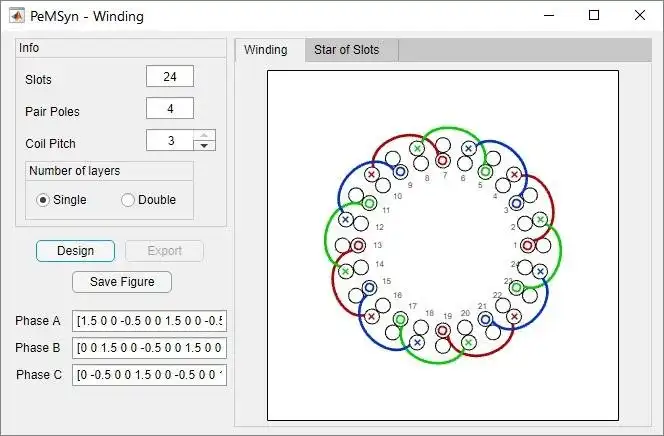

- Winding Wizard Assistant

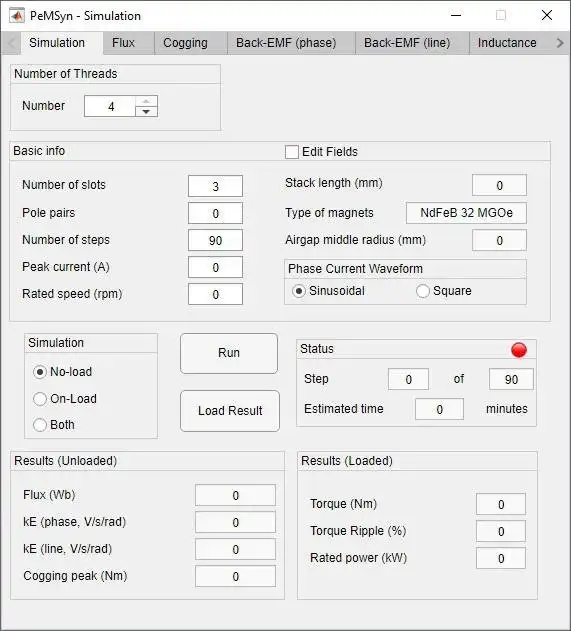

- Performance Simulator (FEMM Based)
--- No-Load and On-Load parameters assessment considering armature reaction and saturation effects
--- Torque Curve Capability assessment
--- Parallel Processing (Matlab only)
TUTORIAL included!
https://www.youtube.com/channel/UCP2N1ELg1SAqlA8VCkSWRlw
https://dx.doi.org/10.18618/REP.2020.2.0009
http://dx.doi.org/10.1109/COBEP/SPEC44138.2019.9065650
[email protected]
Features
- Automated design of Permanent Magnet Syncrhonous Machine
- FEMM support
- Matlab Interface
- Automated FEMM simulation environment
- Winding design
- Scilab Interface
Programming Language
MATLAB, Lua
