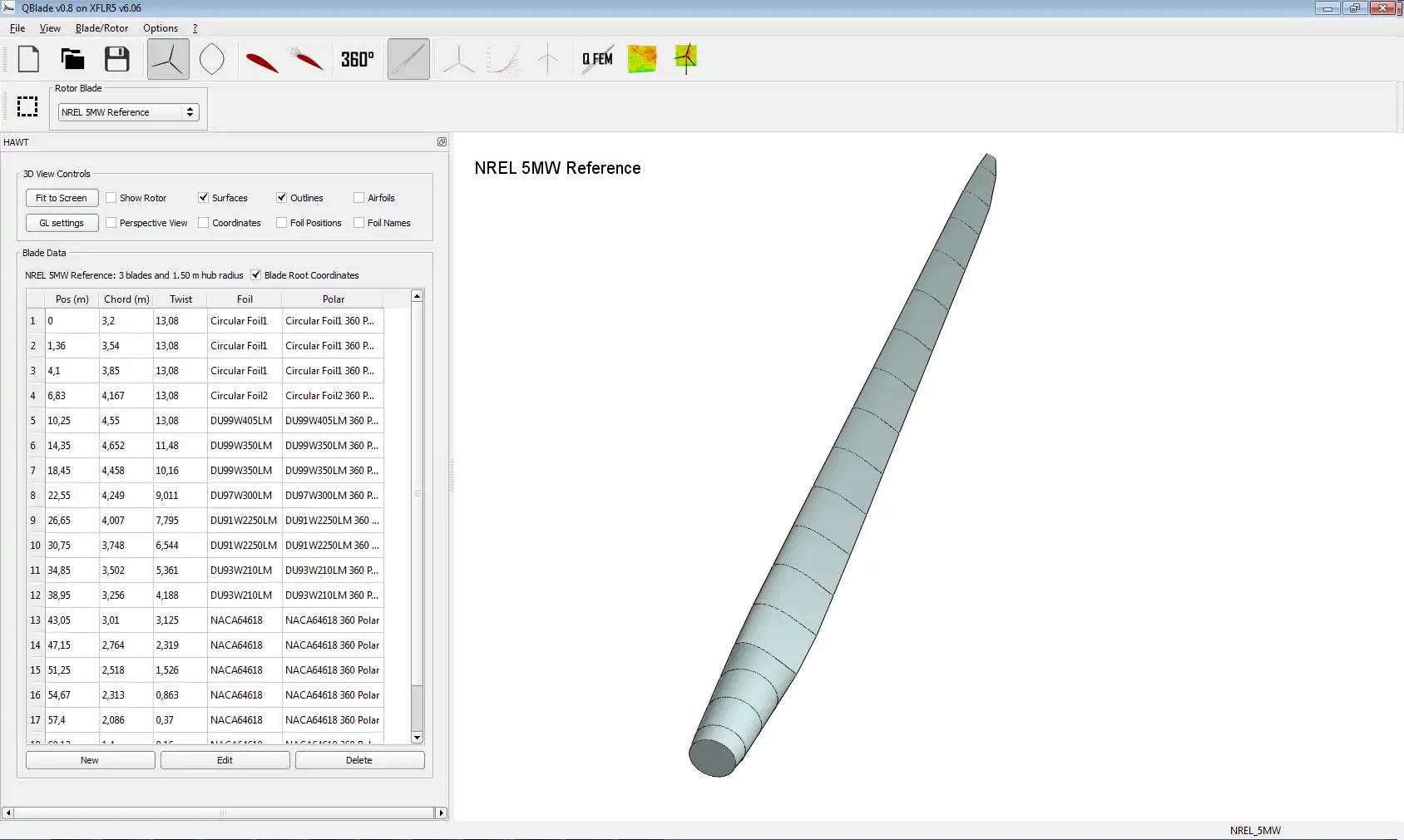

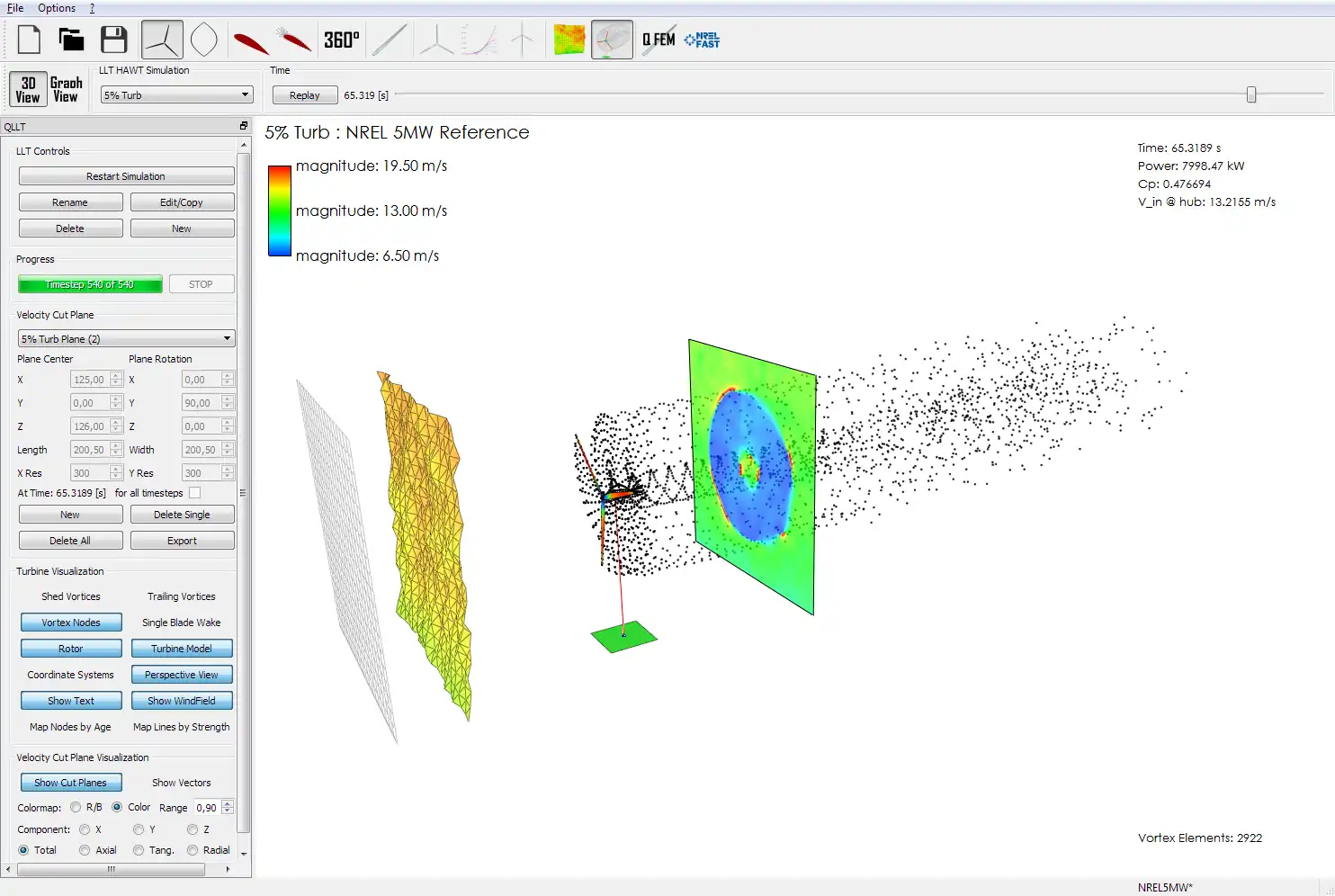

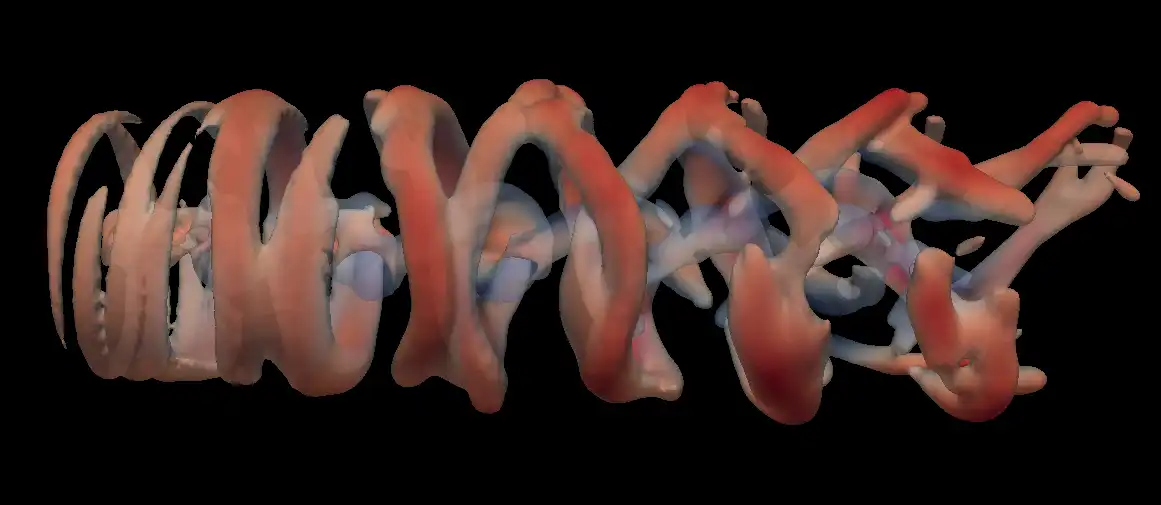

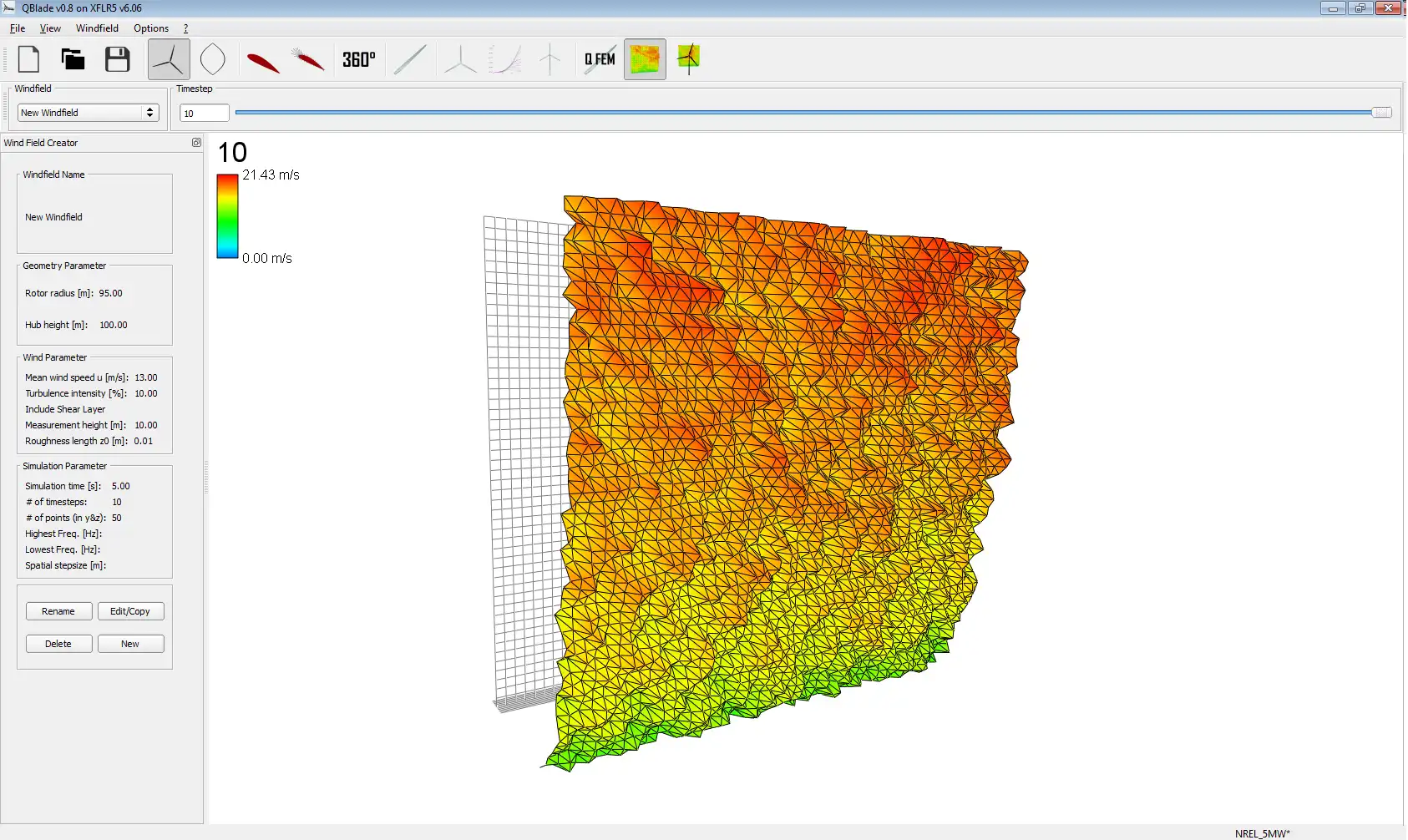

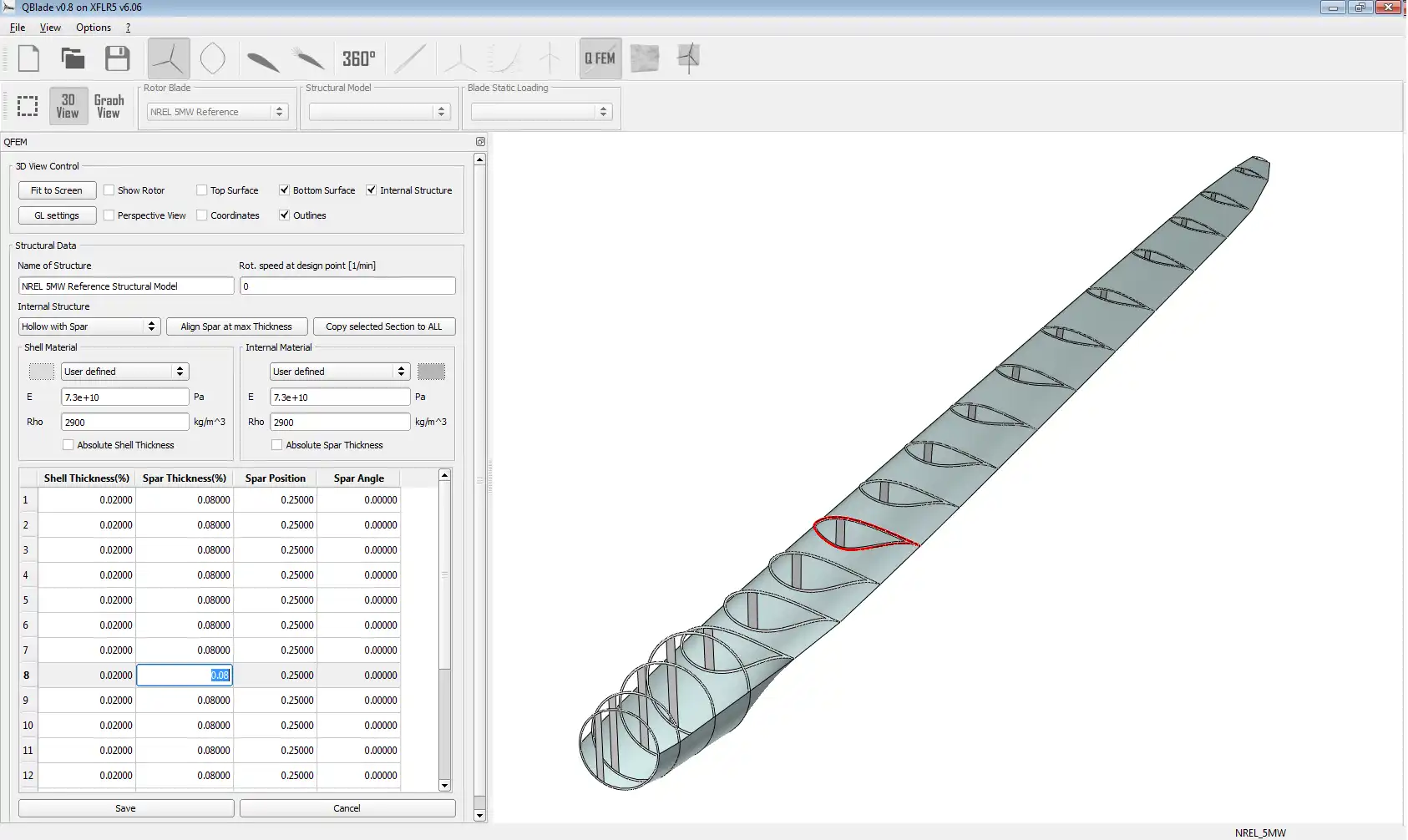

SCREENSHOTS
Ad
QBlade to run in Windows online over Linux online
DESCRIPTION
NEW QBlade v0.96.3v0.96.3 includes a hotfix for a problem leading to crashes during polar extrapolation!
Guidelines will be updated soon, until then use the Guidelines v0.95 document: https://goo.gl/htvb34
QBlade is a Blade Element Momentum Method (BEM), Double Multiple Streamtube (DMS) and nonlinear Lifting Line Theory (LLT) Design and Simulation Software for Vertical- and Horizontal Axis Wind Turbines. It also includes tools to setup and simulate the internal blade structure and perform an aeroelastic analysis of a wind turbine rotor in turbulent inflow conditions through a coupling with FAST from NREL
Feature video: https://goo.gl/VAJ7ww
Features
- Airfoil design and simulation using XFOIL viscous/inviscid analysis
- Extrapolation of XFOIL generated or imported polar data to 360° AoA
- Wind turbine blade design and optimization for horizontal and vertical axis rotors
- Storing of projects, rotors, turbines and simulations in a runtime database
- Computation of rotor and turbine performance over tip speed ratio or windspeed range
- Definition of a blade structural model & modal analysis computation
- Generator for turbulent windfields
- Unsteady lifting line simulations for VAWT & HAWT
- Unsteady Aerodynamics & Dynamic Stall
- ParaView compatibility
- PNoise: Airfoil self-noise evaluation
- Fully coupled with FAST structural simulator from NREL
Audience
Aerospace, Science/Research, Education, Engineering
User interface
Qt
Programming Language
C++
