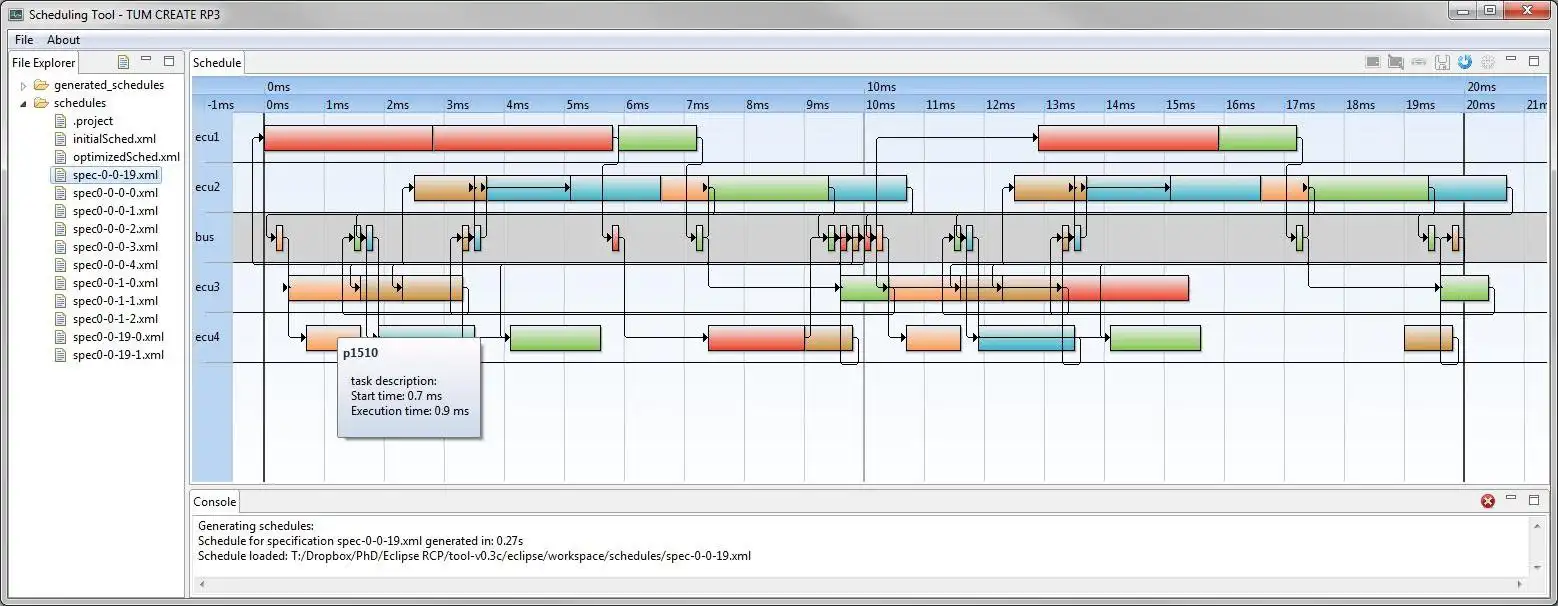

SCREENSHOTS
Ad
Schedule Visualization to run in Windows online over Linux online
DESCRIPTION
The Schedule Visualization tool is based on Eclipse 4 RCP and uses Nebula Gantt charts to visualize schedules. The tool is linked to scheduling and schedule integration algorithms which allow to generate time-triggered schedules and visualizes the calculated schedules. The generated schedule might then be exported to a C header file to update the system schedule.It also supports an online mode using a network monitor to detect if nodes are offline and updates its status in the visualization, e.g., for fault-tolerant systems.
The tool expects an XML-based description for the system specification and allows to export generated schedules as XML.
Features
- visualize time-triggered schedules as gantt-chart
- generate time-triggered schedules
- integrate individually generated subsystem schedules in a global schedule
- monitor the communication of a distributed system and visualize the current system schedule depending on current online/offline nodes
Audience
Science/Research, Automotive
User interface
Win32 (MS Windows)
Programming Language
Java
