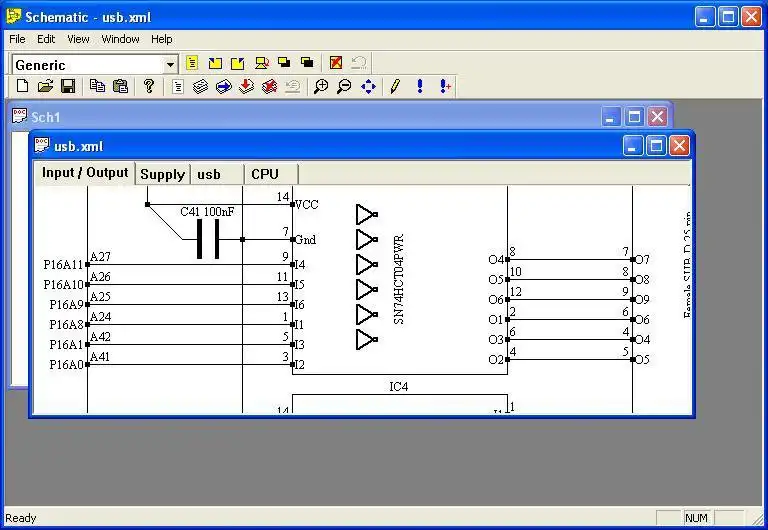

SCREENSHOTS
Ad
SchematicDrawer
DESCRIPTION
Software running on Microsoft Windows that allow to draw electronic schematics. ie components linked by connections. The software handle many types of components from resistor and capacitor to Generic components.The extensible and configurable component library can include vector drawing components as well as bitmap images, allowing the software to cover other fields of engineering requiring connected schematics.
The drawings are saved in XML and exported in pdf and Windows metafile formats.
This is an application that can also be fetched from https://sourceforge.net/projects/schematicdrawer/. It has been hosted in OnWorks in order to be run online in an easiest way from one of our free Operative Systems.
