SoundStepper to run in Windows online over Linux online
DESCRIPTION
SoundStepper is a "100% software" telescope controller, for Windows, using audio hardware to control step motors at real time. All it requires to operate are external step motor drives, which can be a commercial "pulse/direction" drive or analog current amplifiers.Documentation: http://soundstepper.sourceforge.net/
Features
- Controls up to 4 motors (RA, Dec, focuser and field derotator) of a equatorial or alt-azimuth-mounted telescope
- Controls any type of equatorial-mounted telescopes with step motors. Manual-pointing mounts (ex: barndoor, poncet platforms, "polar axis", threaded-rod driven mounts), "meridian-flip" mounts (ex: GEM or cross-axis), and "no-meridian-flip" mounts (ex: Fork, yoke, horseshoe, split-ring), and beginning from 5.0 beta version, alt-azimuth mounts too
- Can "sync" and "go-to" manual-pointing mounts, making faint objects easier to find (manually center scope on a star, find the star in Cartes du Ciel, right-button, "sync", right-button on faint object, "go-to")

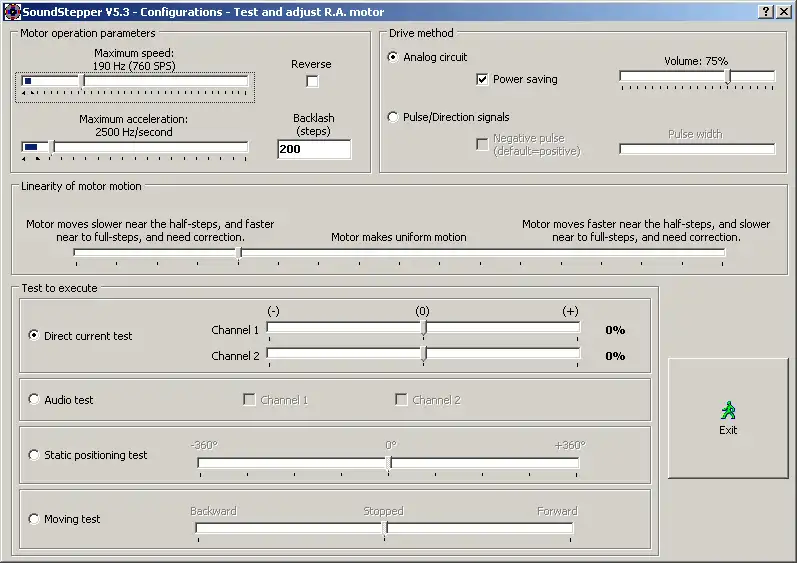

- Using analog control, SoundStepper drive step motors with quietness, smoothness and linearity. With adjustable linearity, the typical wobbling is 1/20 of step. Like microstep controllers, it can put the motors in any position between step positions
- In addition to the analog control option, SoundStepper is also capable to control commercial "pulse/direction" microstepping drivers
- No PICs, no micro soldering on small SMDs, no EPROMs. SoundStepper uses cheap USB-AUDIO devices to drive steppers, through a simple (SUGGESTED) analog current controller, or standard "pulse/direction" drivers
- No MS-DOS dedicated computers. SoundStepper does realtime control sharing the computer with planetarium, photo/video capture and others applications, in Windows. It take advantage of the audio devices buffering and autonomous playing

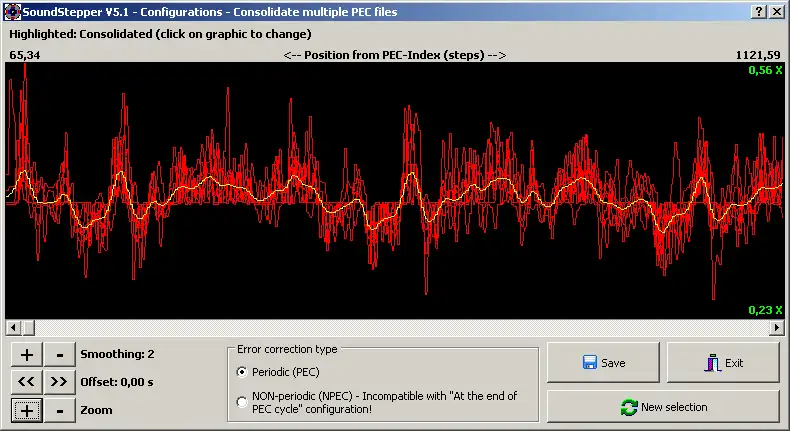

- Built-in PEC and NPEC (periodic and non-periodic error correction systems). With NPEC, the entire threaded rod can be "trained", enabling the use of cheap thread rods, and the "thread rod/nut/arm" system (like "Astrotrac")

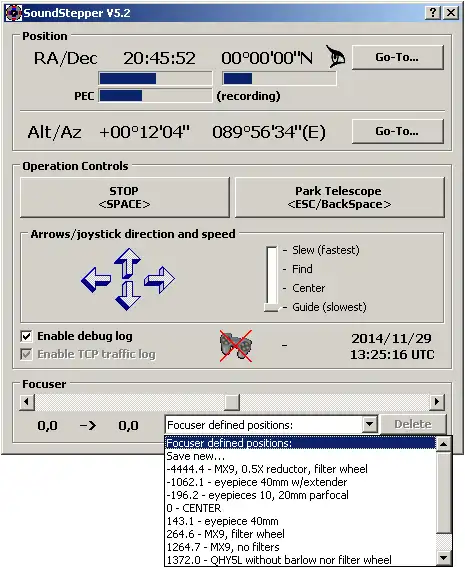

- Main screen with keyboard arrows "control box" (four speeds: slew, find, center and guiding), go-to, flip, park/unpark, and focuser/rotator controls
- Permit save many defined positions of focuser, according eyepiece, camera, barlow and filter being used
- LX200 command interface compatibility, enabling the interoperability with Meade-compatible software, through virtual serial-TCP redirector. The TCP/IP interface enable control the scope from a remote computer

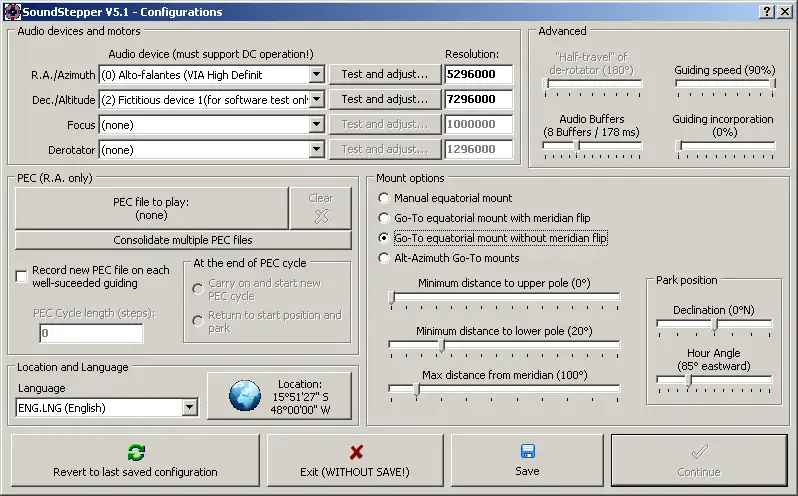

- Configuration screen with many controls, to match SoundStepper with your motors and mount

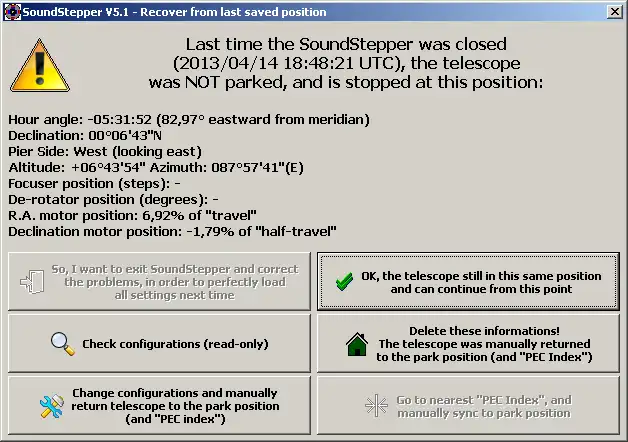

- Autosave and autorecover last telescope and motor positions (crash recover)
- Joystick interface: You can control the telescope with a standard joystick, wired or wireless.
- Field derotation for alt-azimuth mounts
- Backlash compensation
- Portable: You can run SoundStepper from any external HD or Pen-drive. No installation procedure is required
- Certified from Windows XP to Windows 10, including Vista, 7 and 8.1 versions, both 32 and 64-bit
- Native ASCOM driver for Telescope and Focuser
Audience
Non-Profit Organizations, Science/Research, Advanced End Users, Developers, End Users/Desktop
User interface
Win32 (MS Windows), Console/Terminal, Windows Aero
Programming Language
Delphi/Kylix
