trnsys-fmu to run in Windows online over Linux online
DESCRIPTION

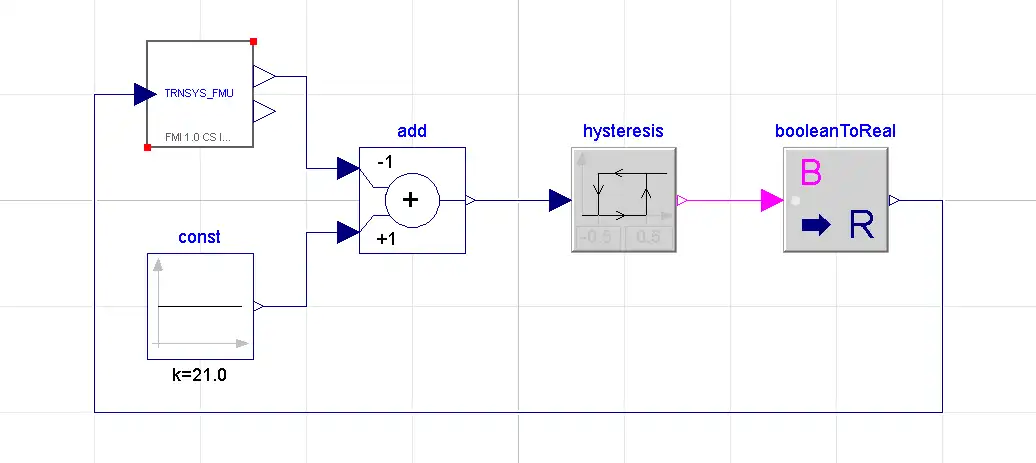

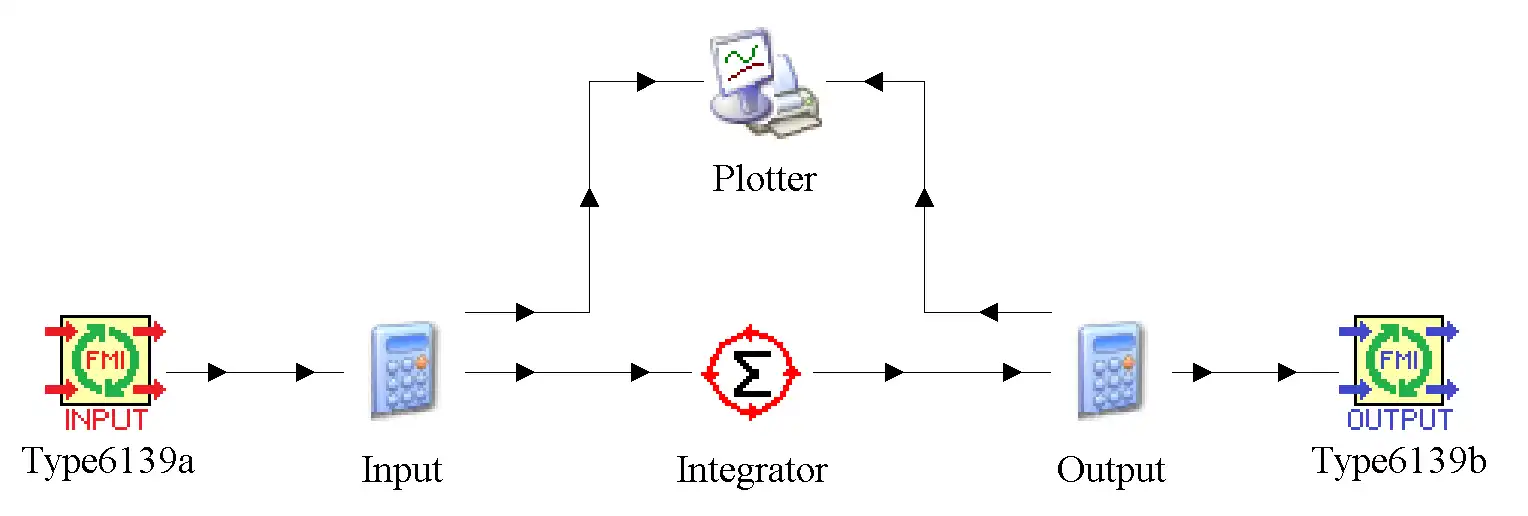

This open-source project provides a stand-alone tool for exporting FMUs for Co-Simulation from TRNSYS 17 models. The current release supports FMI version 1.0 and 2.0.Instructions on installation and usage are given in the documentation, which is provided as part of the download. This documentation also contains a tutorial on how to export a TRNSYS model as FMU for co-simulation and how to link it with a simple controller implemented in Modelica.
The tool is based on code from the FMI++ library.
Features
- exports TRNSYS models as FMUs for co-simulation (tool coupling)
- generated FMUs are compliant with FMI Version 1.0 and 2.0
- requires an installed version of TRNSYS17 at runtime
- FMUs can be generated with the help of a graphical user interface or using Python scripts
Audience
Science/Research, End Users/Desktop, Engineering
User interface
Command-line, Windows Aero
Programming Language
Python, C++, C
