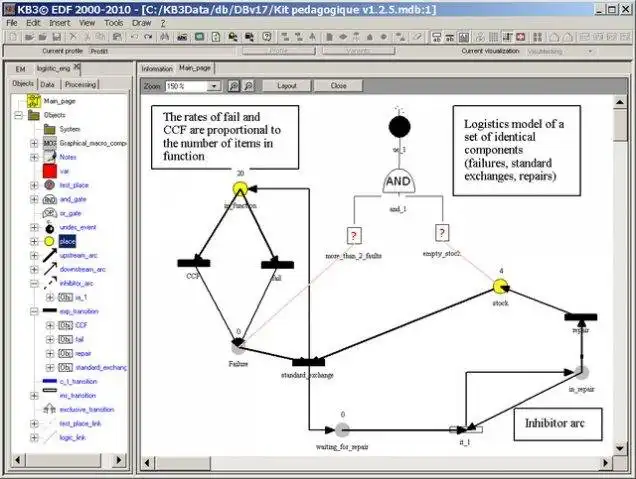

SCREENSHOTS
Ad
Visual Figaro
DESCRIPTION
Visual Figaro is an integrated environment to develop component libraries for the dependability modeling tool KB3 used by EDF (http://www.edf.fr/recherche/codes-de-calcul/kb3). KB3 is based on the FIGARO reliability modeling language, suitable for describing CTMC (continuous time Markov chains), DES (discrete event simulation) models, and for automatic generation of fault trees. FIGARO is objet oriented, close to natural language and enables building libraries of reusable components (knowledge bases). Go to "Files" tab to download various Figaro based tools (Visual Figaro, KB3, YAMS), lots of examples and documentation.
Features
- Capture your expertise in dependability and security modeling in FIGARO libraries

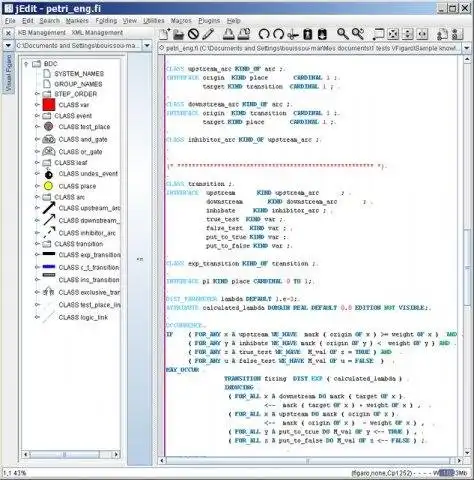

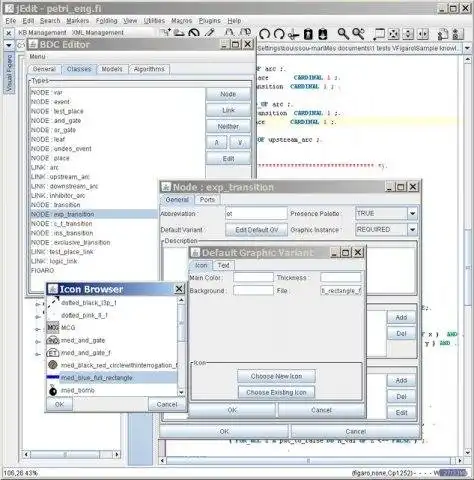

- Visual Figaro: syntactic help for building FIGARO libraries you can load in KB3
- Visual Figaro: browse and edit a set of pedagogical libraries, tailor them to your needs

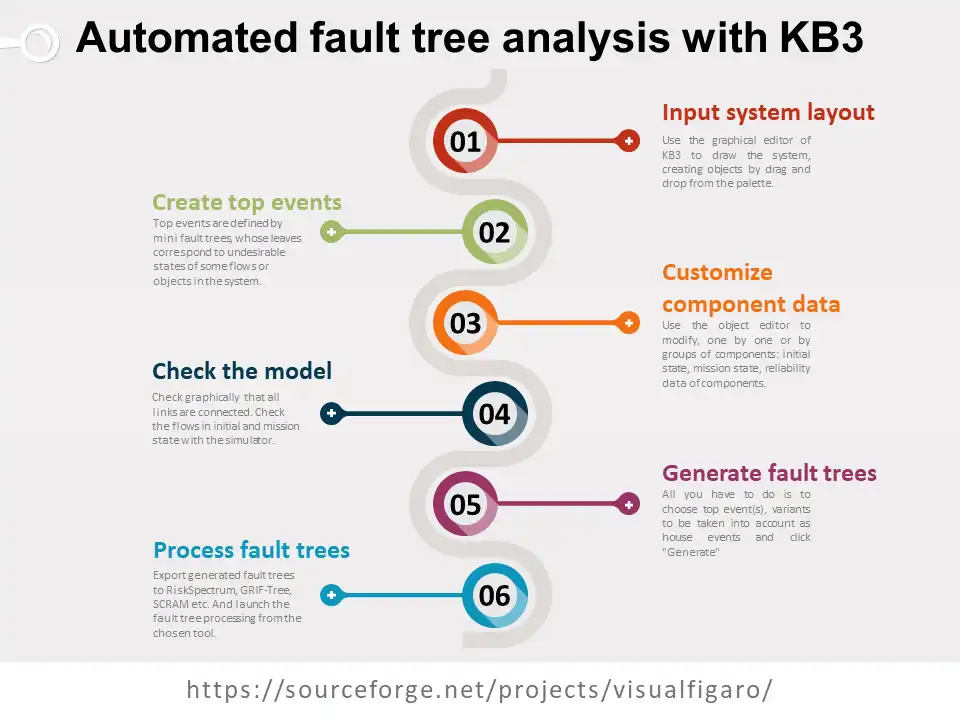

- Visual Figaro: generate fault trees directly from Figaro textual models
- Visual Figaro: use the interactive simulator to validate your dynamic models
- KB3: load FIGARO libraries, automatically generate fault trees and discrete event simulation models
- Assess the safety, dependability and security of your system using ready made libraries
Audience
Science/Research, Education, Security, Engineering
Programming Language
Java
