This is the Linux app named umple whose latest release can be downloaded as umple-1.31.1.5860.78bb27cc6.jar. It can be run online in the free hosting provider OnWorks for workstations.
Download and run online this app named umple with OnWorks for free.
Follow these instructions in order to run this app:
- 1. Downloaded this application in your PC.
- 2. Enter in our file manager https://www.onworks.net/myfiles.php?username=XXXXX with the username that you want.
- 3. Upload this application in such filemanager.
- 4. Start the OnWorks Linux online or Windows online emulator or MACOS online emulator from this website.
- 5. From the OnWorks Linux OS you have just started, goto our file manager https://www.onworks.net/myfiles.php?username=XXXXX with the username that you want.
- 6. Download the application, install it and run it.

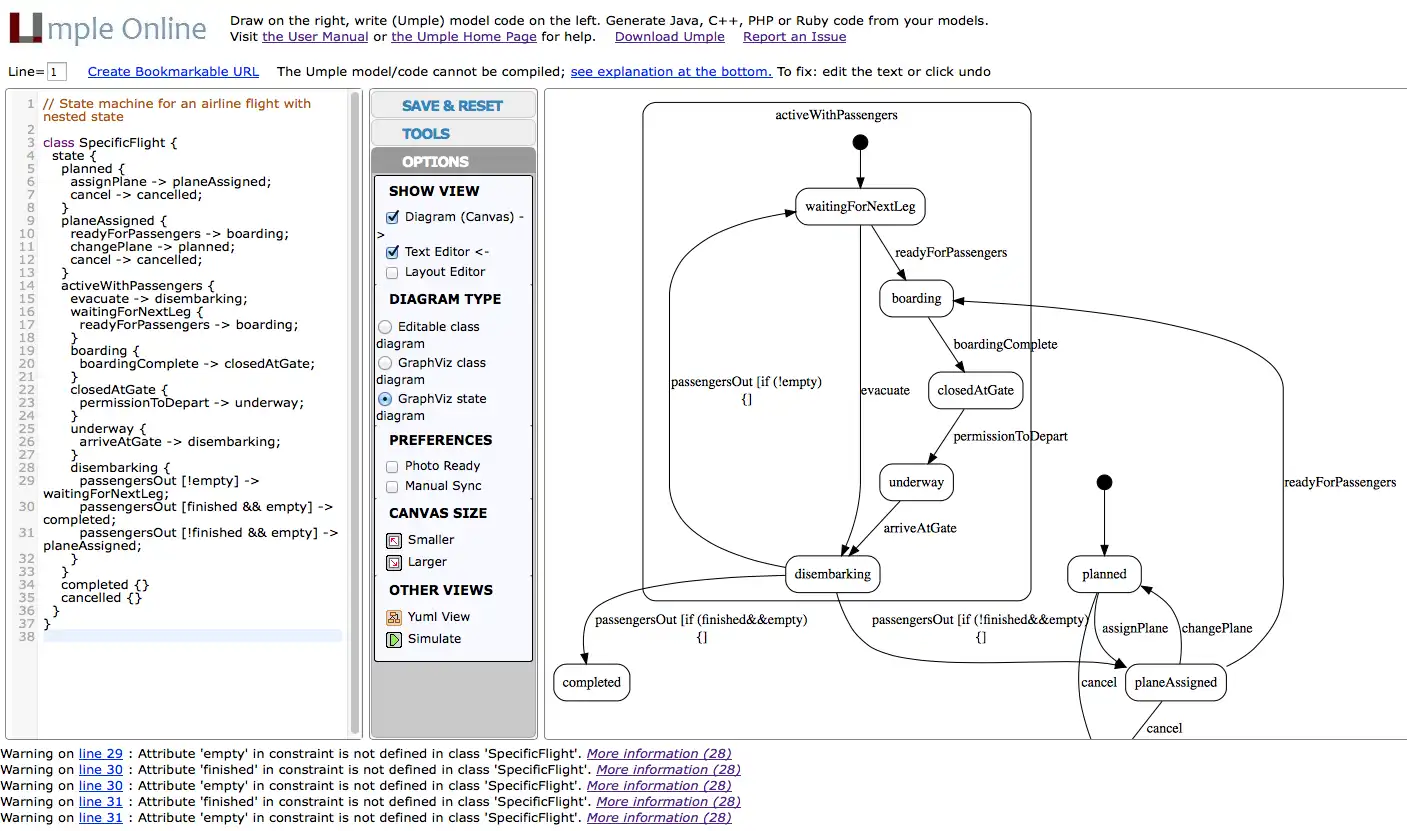

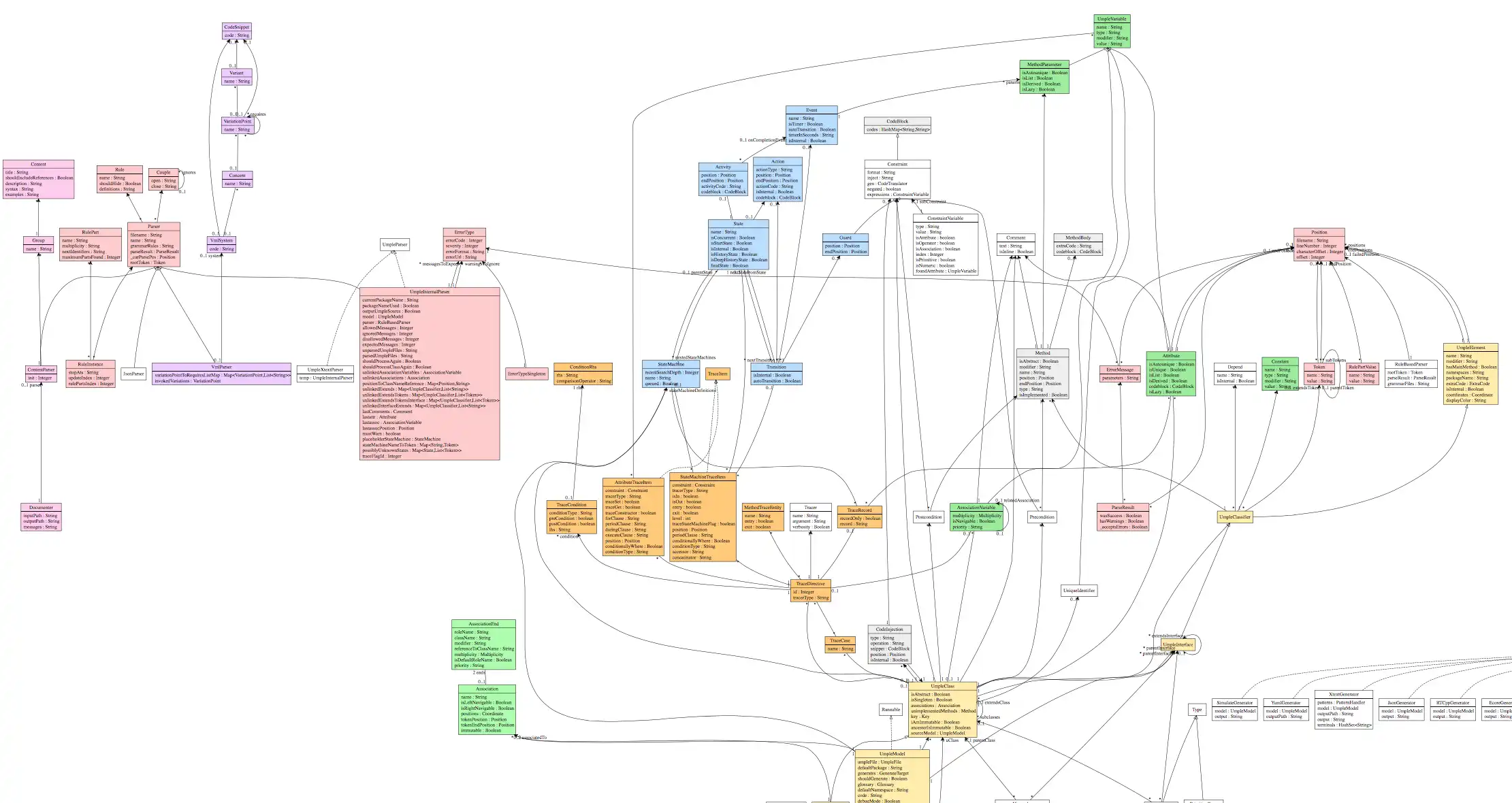

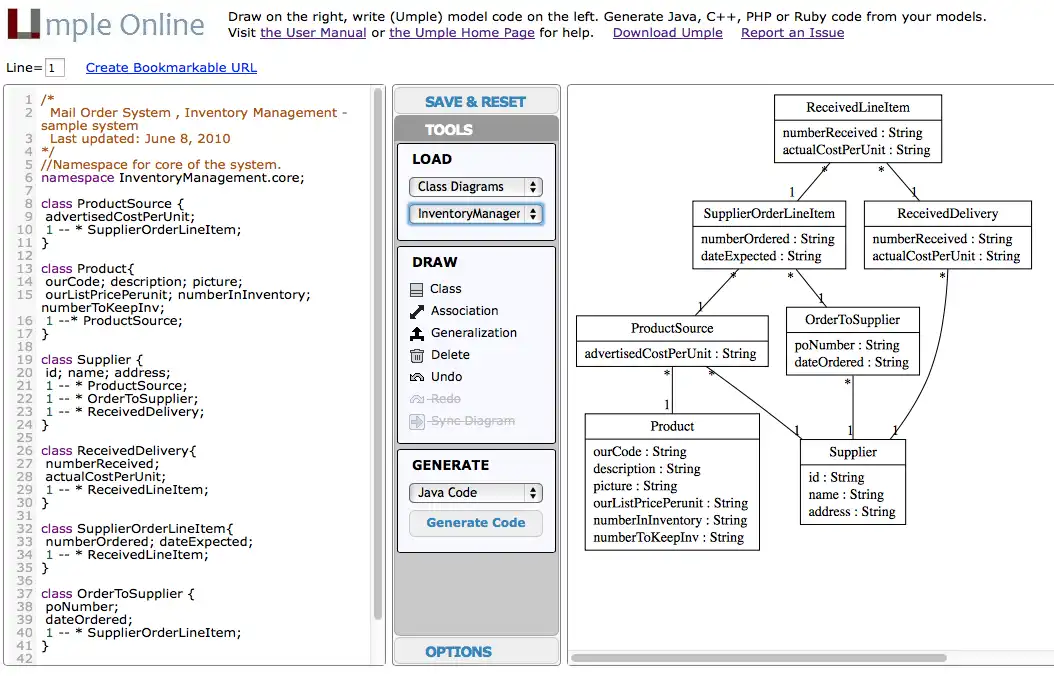

SCREENSHOTS
Ad
umple
DESCRIPTION
Umple is technology for Model-Oriented Programming. It adds abstractions such as UML associations, attributes, and state machines to object-oriented programming languages such as Java, C++, PHP and Ruby.
A developer can use Umple in one of several ways. They can start with a pure model, containing only classes, associations, attributes and state machines, and then gradually add methods in one of the base languages to the Umple code base. Alternatively a developer can start with a normal program in a language like Java, and add modeling constructs in very small increments, gradually moving their system from a code-centric system from a model-centric system. Either way, Umple provides top-quality code generation.
Umple is being used, for real systems. In fact the Umple compiler itself was written in Umple. Any Java, C++ or PHP project could use Umple.
The UmpleOnline web app provides a quick way to explore the Umple approach. It is at http://try.umple.org
Features
- Generate code from UML
- Generate UML class diagrams and state machine diagrams from a textual form of UML
- Edit UML diagrams online
- Embed UML in Java, C++ or PhP
Audience
Education, Developers
User interface
Web-based, Console/Terminal, Eclipse
Programming Language
Java
This is an application that can also be fetched from https://sourceforge.net/projects/umple/. It has been hosted in OnWorks in order to be run online in an easiest way from one of our free Operative Systems.
