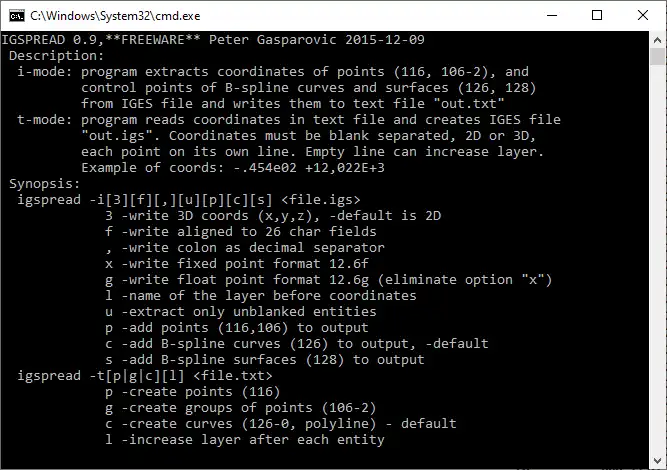

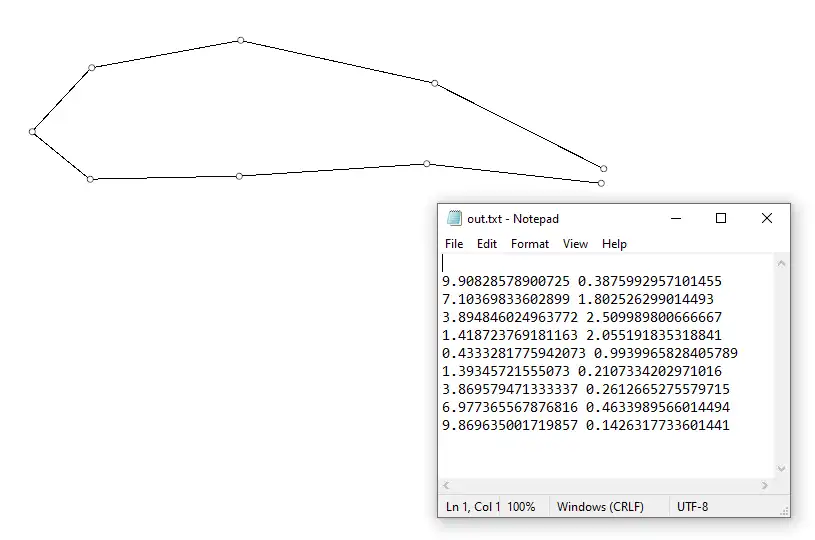

SCREENSHOTS
Ad
igspread
DESCRIPTION
Command-line interface program that converts between IGES file and text file.
Because IGES files are compatible with most of CAD systems, you can convert curves and points created in CAD program into coordinates in text file or you can do the opposite - convert text files into curves. It is especially suitable for curves described by hundreds of coordinates, e.g. airfoil contours of aircraft wings.
Output filename is either out.txt or out.igs.
Features
- can read IGES files with points, B-spline curves and B-spline surfaces
- can write IGES files with points or polylines (piece-wise linear B-splines)
- can read and write text files with 2D or 3D coordinates
- writes coordinates separated by space in various text formats
User interface
Command-line
Programming Language
C
